Removal Procedure

  1. Remove the license plate lamp harness. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) , LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in EXTERIOR LIGHTS article.
  2. Remove the bumper filler panel by pulling the retaining clips out of the body.
  3. Remove the bumper filler panel from the vehicle.

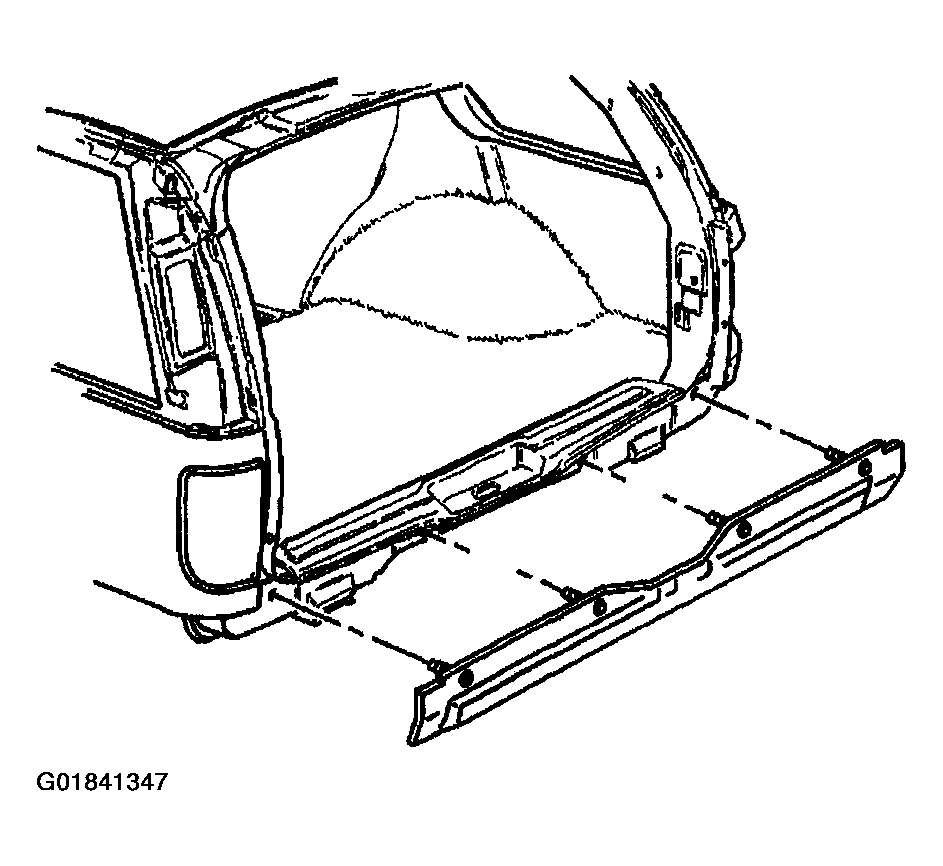

    4. Fig 1: Locating Rear Bumper Filler Panel (Utility Vehicles W/Liftgate)
    G01841347Courtesy of GENERAL MOTORS CORP.
