Installation Procedure

  1. Install the bumper filler panel to the vehicle by pressing the retaining clips onto the vehicle body holes.

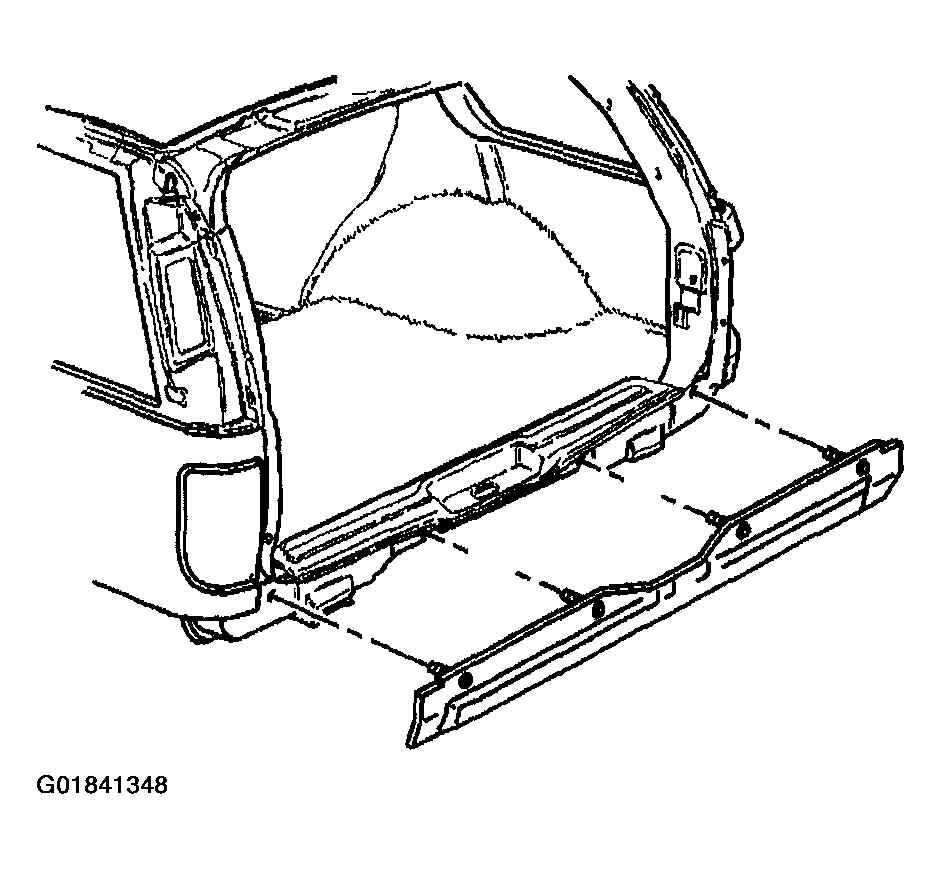

    Fig 1: Locating Rear Bumper Filler Panel (Utility Vehicles W/Liftgate)
    G01841348Courtesy of GENERAL MOTORS CORP.
  2. Install the license plate lamp harness. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) , LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in EXTERIOR LIGHTS article.
