Removal Procedure

  1. Remove the license plate lamp harness. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) , LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in EXTERIOR LIGHTS article.
  2. Remove the bolts which retain the rear bumper filler panel to the vehicle.
  3. Remove the rear bumper filler panel from the vehicle.

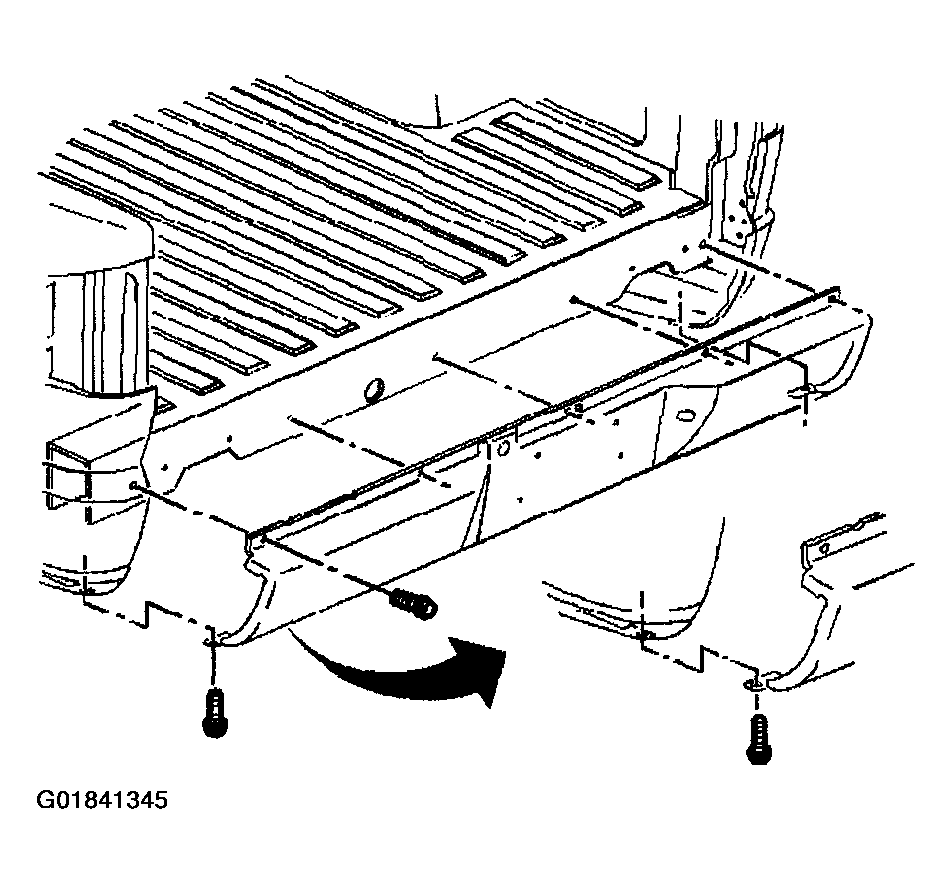

    4. Fig 1: Locating Rear Bumper Filler Panel (Standard)
    G01841345Courtesy of GENERAL MOTORS CORP.
