Installation Procedure

  1. Install the bumper filler panel to the vehicle.
    NOTE: Refer to FASTENER NOTICE in CAUTIONS & NOTICES article.

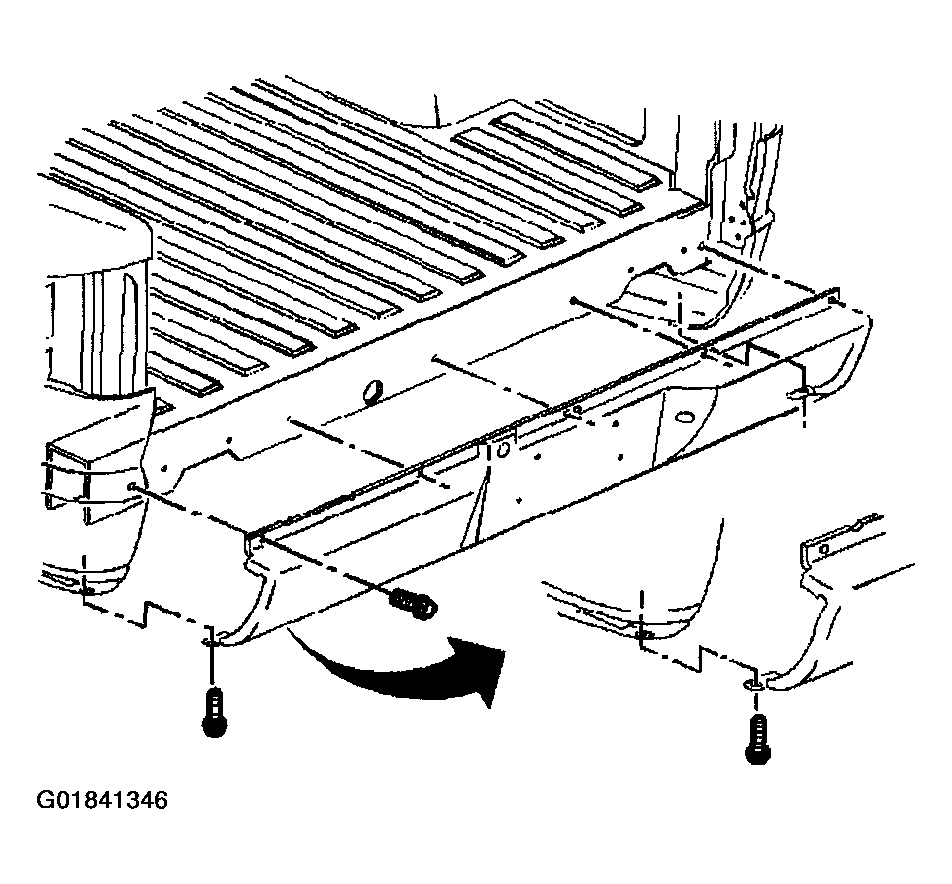

    Fig 1: Locating Rear Bumper Filler Panel (Standard)
    G01841346Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts which retain the rear bumper filler panel to the vehicle.

    Tighten

    Tighten the rear bumper filler panel bolts to 1.5 N.m (14 lb in).

  3. Install the license plate lamp harness. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) , LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in EXTERIOR LIGHTS article.
