Removal Procedure

  1. Remove the license lamps. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) , LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in EXTERIOR LIGHTS article.
  2. Remove all of the step pads from the bumper.

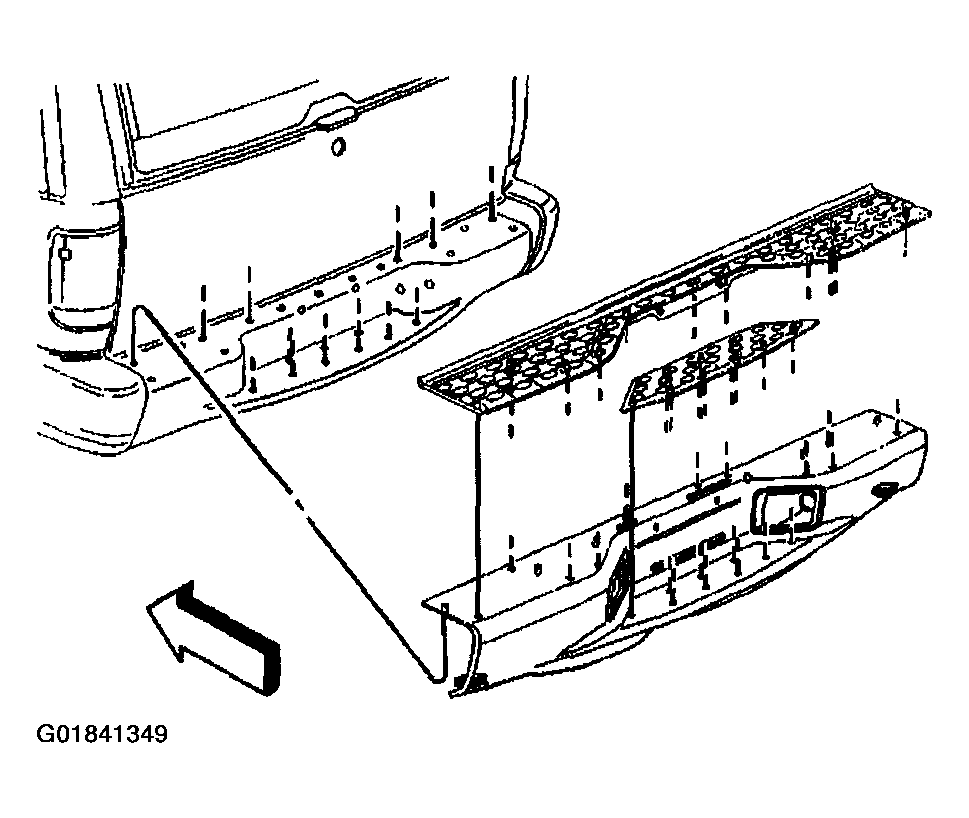

    Fig 1: Locating Rear Bumper Fascia
    G01841349Courtesy of GENERAL MOTORS CORP.
  3. Remove the clips securing the fascia at the bottom of the impact bar.
  4. Remove the fascia.
