Installation Procedure

  1. Install the fascia to the impact bar with the clips on the bottom edge of the fascia.

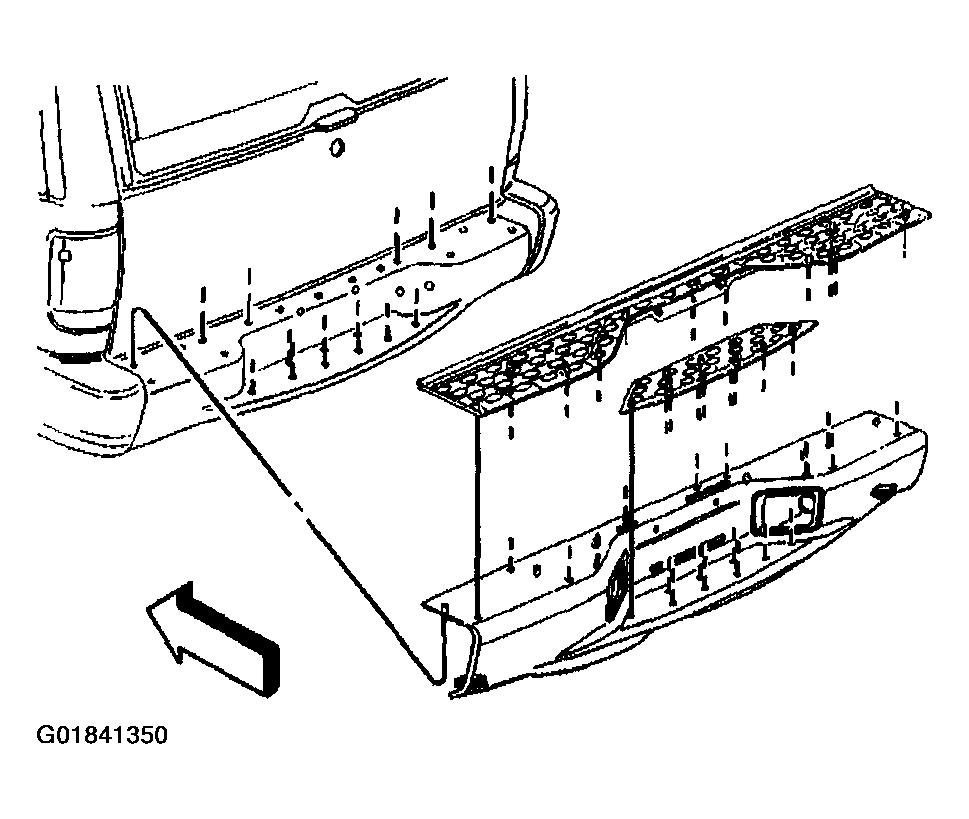

    Fig 1: Locating Rear Bumper Fascia
    G01841350Courtesy of GENERAL MOTORS CORP.
  2. Install the step pads to the bumper.
  3. Install the license lamps. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) , LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in EXTERIOR LIGHTS article.
