Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in GENERAL INFORMATION.
  2. Ensure that the ignition switch is in the OFF position.
  3. Disconnect the electrical connector from the foglamps.

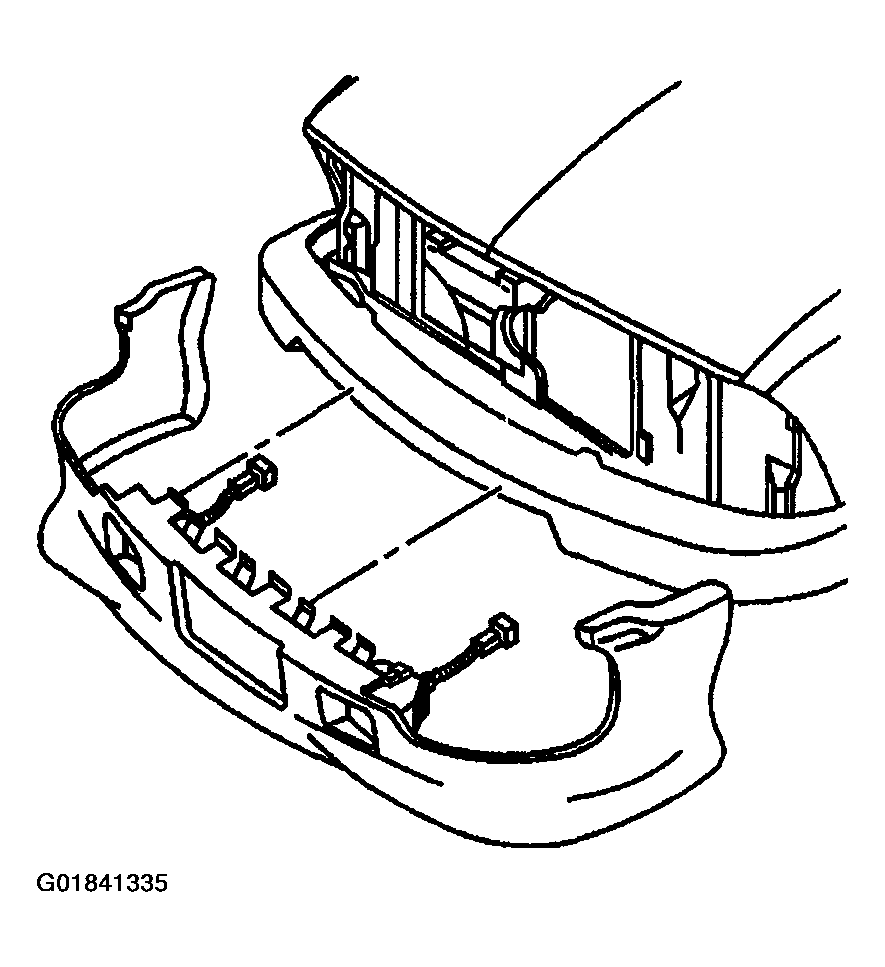

    Fig 1: Locating Foglamps Electrical Connector
    G01841335Courtesy of GENERAL MOTORS CORP.
  4. Remove the push-pins that retain the fascia to the impact bar.
  5. Remove the screws that retain the fascia to the fascia support.
  6. Remove the fascia from the impact bar retainers.
  7. Remove the fascia from the vehicle.
