Installation Procedure

  1. Install the front fascia to the vehicle.
    NOTE: Refer to FASTENER NOTICE in CAUTIONS & NOTICES article.
  2. Install the fascia screws to the impact bar retainers.

    Tighten

    Tighten the fascia screws to 1.9 N.m (17 lb in).

  3. Install the push-pins that retain the fascia to the impact bar.
  4. Connect the electrical connector to the foglamps.

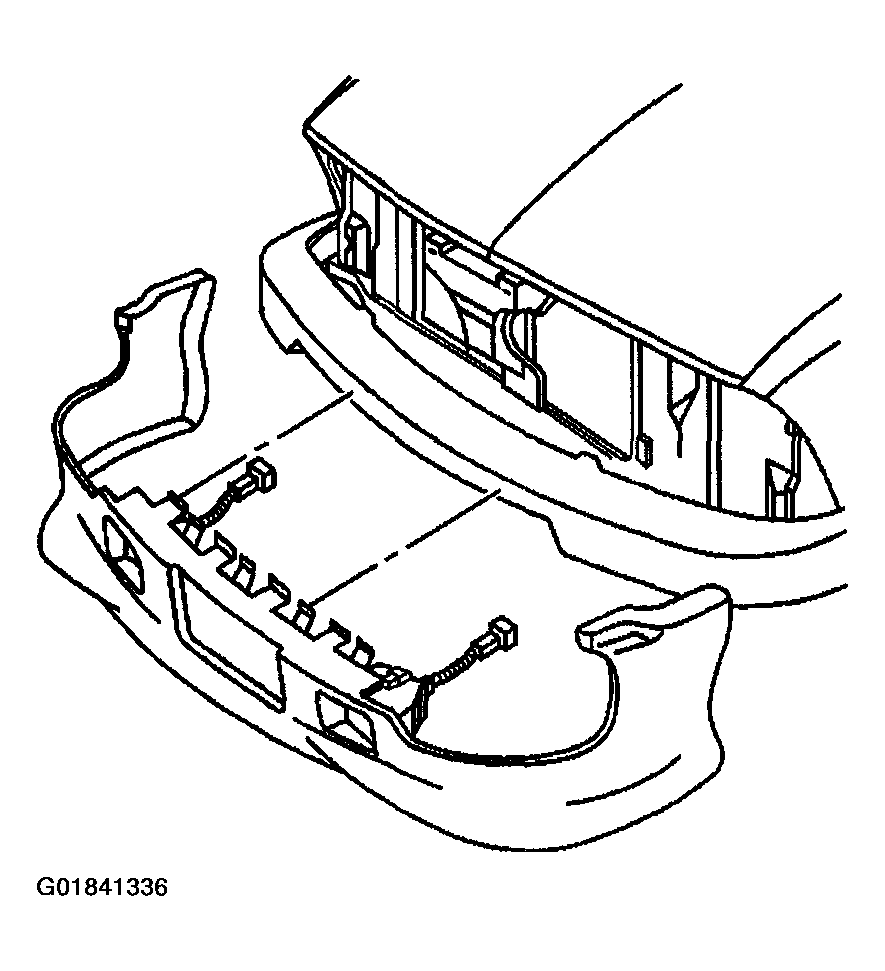

    Fig 1: Locating Foglamps Electrical Connector
    G01841336Courtesy of GENERAL MOTORS CORP.
  5. Lower the vehicle.
