Removal Procedure

  1. Remove the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM article.
  2. Disengage the retainers in order to remove the retainers from the fascia.

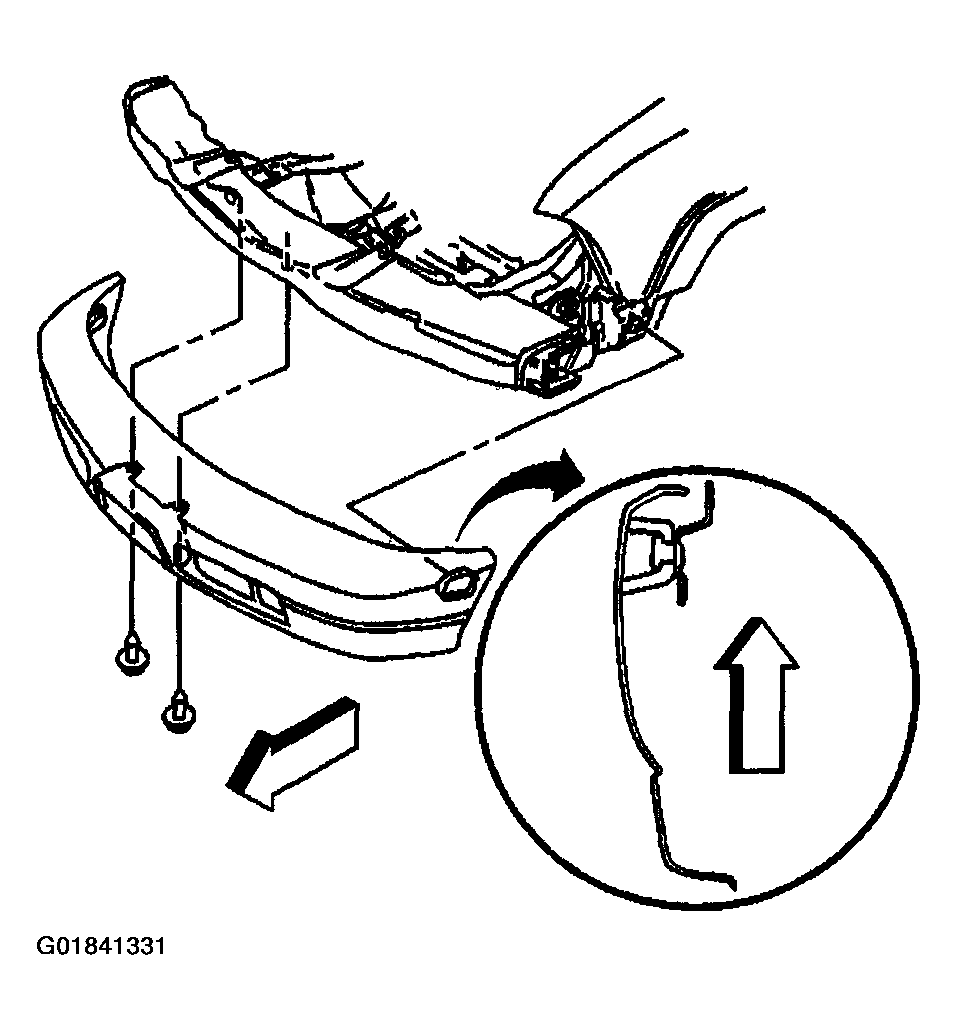

    Fig 1: Locating Front Bumper Fascia Retainers (GMC)
    G01841331Courtesy of GENERAL MOTORS CORP.
  3. Remove the front bumper fascia from the vehicle.


  1. Remove the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM article.
  2. Disengage the retainers in order to remove the retainers from the fascia.
    Fig 1: Locating Front Bumper Fascia Retainers (GMC)
    G01841333Courtesy of GENERAL MOTORS CORP.
  3. Remove the front bumper fascia from the vehicle.
