Installation Procedure

  1. Install the front bumper fascia to the vehicle.
  2. Install the fascia retainers. Ensure that the retainers lock into position.

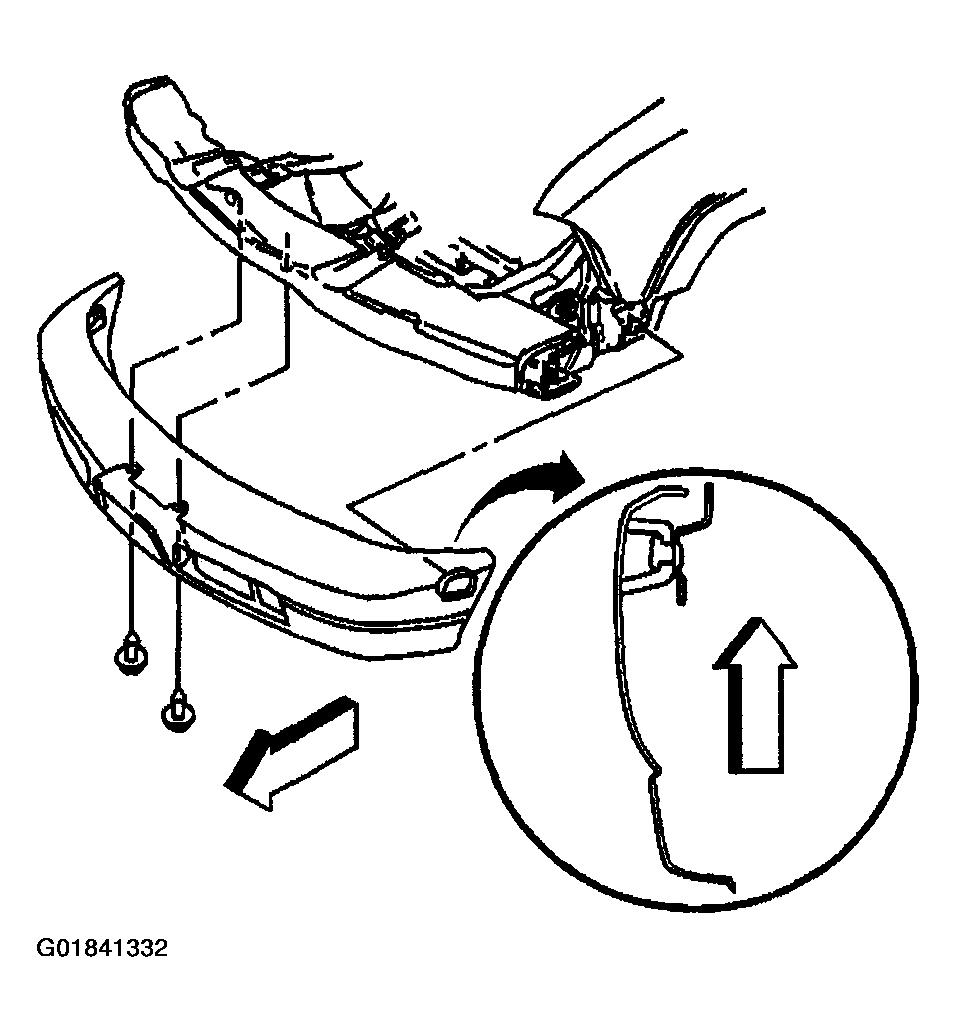

    Fig 1: Locating Front Bumper Fascia Retainers (GMC)
    G01841332Courtesy of GENERAL MOTORS CORP.
  3. Install the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM article.


  1. Install the front bumper fascia to the vehicle.
  2. Install the fascia retainers. Ensure that the retainers lock into position.

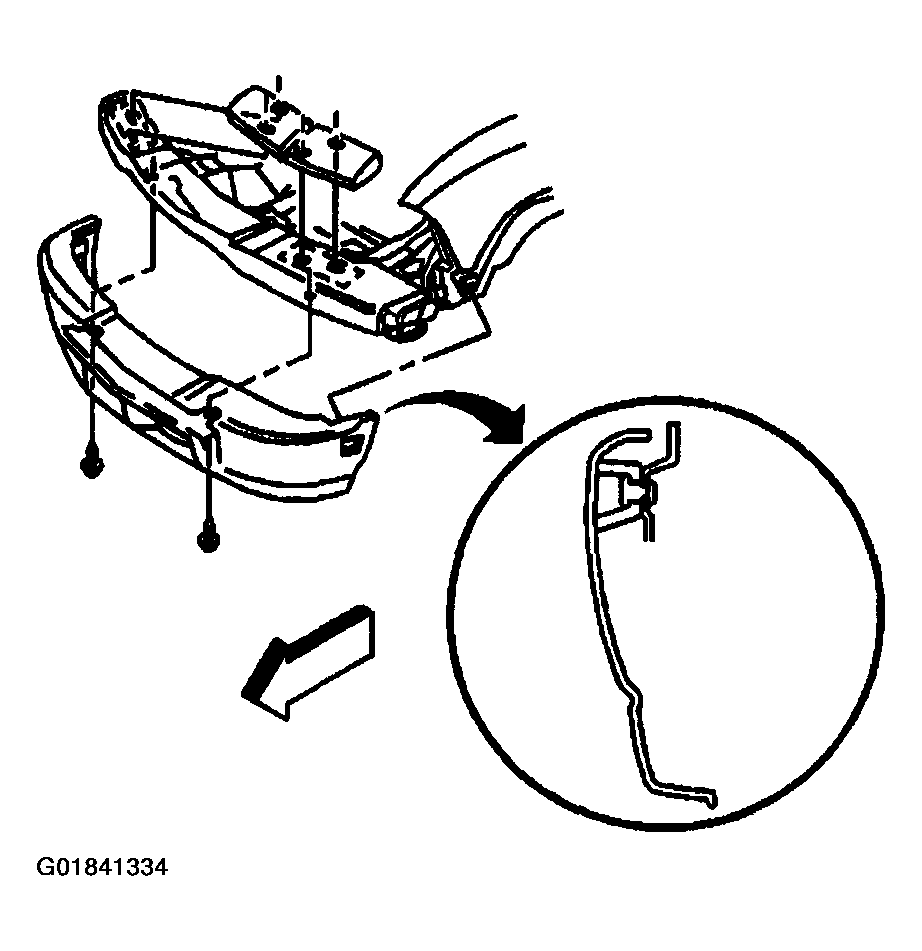

    Fig 1: Locating Front Bumper Fascia Retainers (GMC)
    G01841334Courtesy of GENERAL MOTORS CORP.
  3. Install the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in EXTERIOR TRIM article.
