Removal Procedure

  1. Remove the filler strip adhesive ends from the bumper.
  2. Pry the filler strips retaining tabs from the bumper.

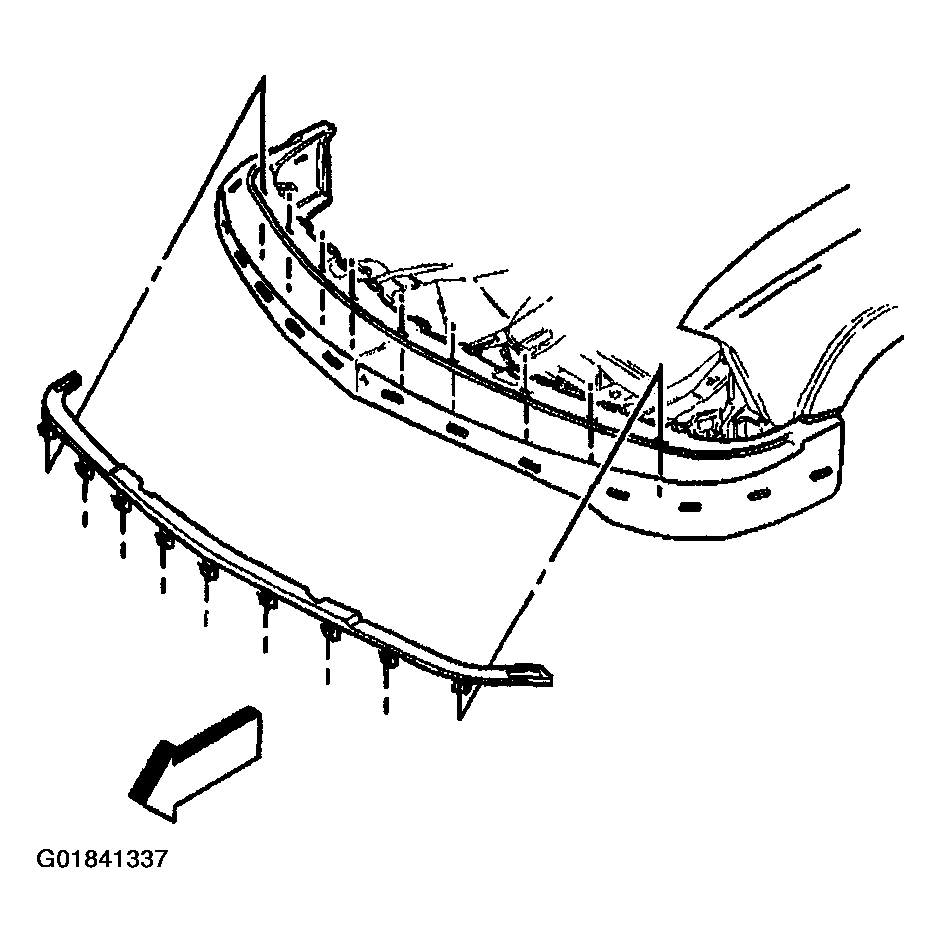

    Fig 1: Locating Filler Strips Retaining Tabs
    G01841337Courtesy of GENERAL MOTORS CORP.
  3. Remove the bumper filler strip.
