Installation Procedure

  1. Remove the tabs from the filler strip adhesive strips.
  2. Press the filler strip retaining tabs into the bumper slots.

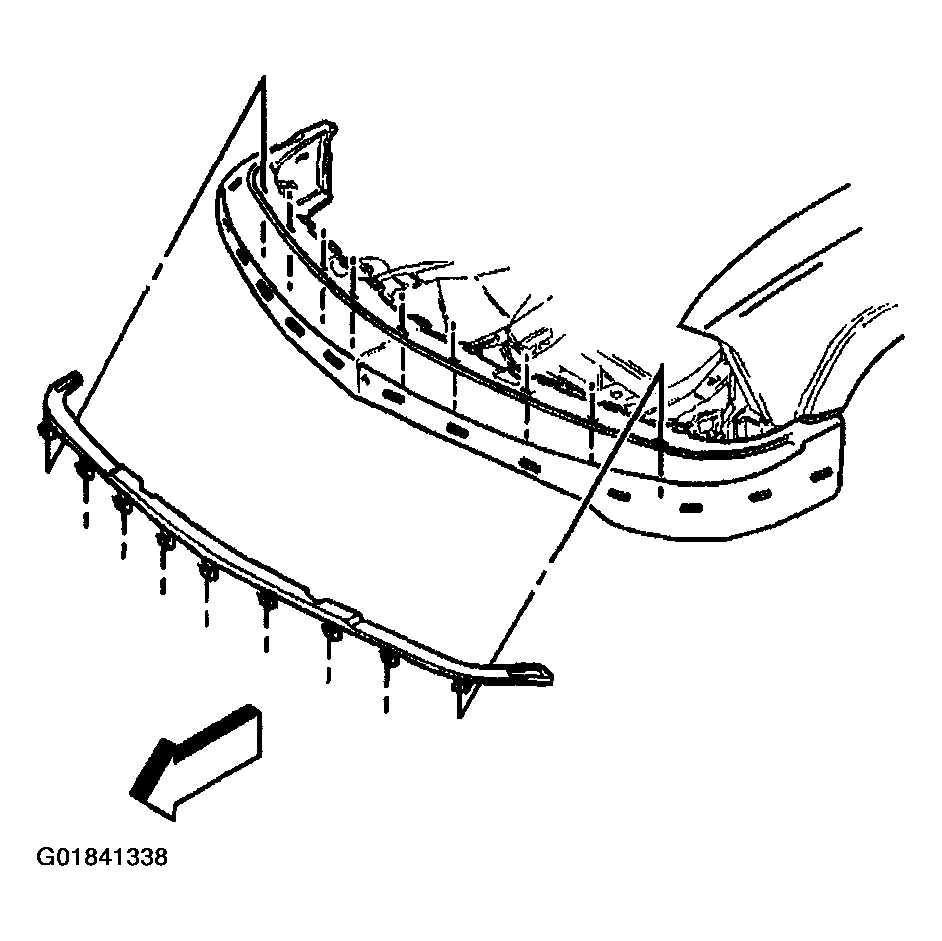

    Fig 1: Locating Filler Strips Retaining Tabs
    G01841338Courtesy of GENERAL MOTORS CORP.
  3. Press the adhesive ends down onto the bumper.
