Removal Procedure

  1. Remove three screws securing the rear bumper extension to the wheelhouse panel.
  2. Remove the bolt that retains the rear bumper extension to the brace.
  3. Remove the nuts that retain the rear bumper extension to the rear quarter panel.

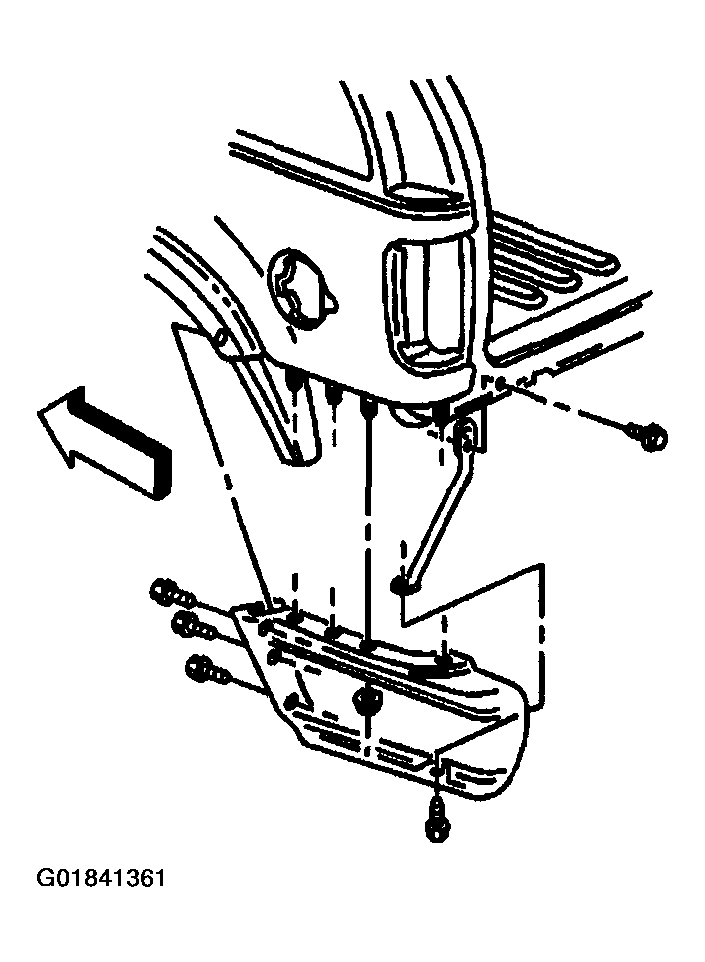

    4. Fig 1: Locating Rear Bumper Extension
    G01841361Courtesy of GENERAL MOTORS CORP.
