Removal Procedure

  1. Remove the rear bumper impact bar. Refer to IMPACT BAR REPLACEMENT - REAR BUMPER (PICKUP)  or IMPACT BAR REPLACEMENT - REAR BUMPER (UTILITY) .
  2. Remove 4 nuts and 2 stud plate assemblies securing the rear bumper bracket to each frame rail.
  3. Remove the rear bumper bracket from the frame rail.

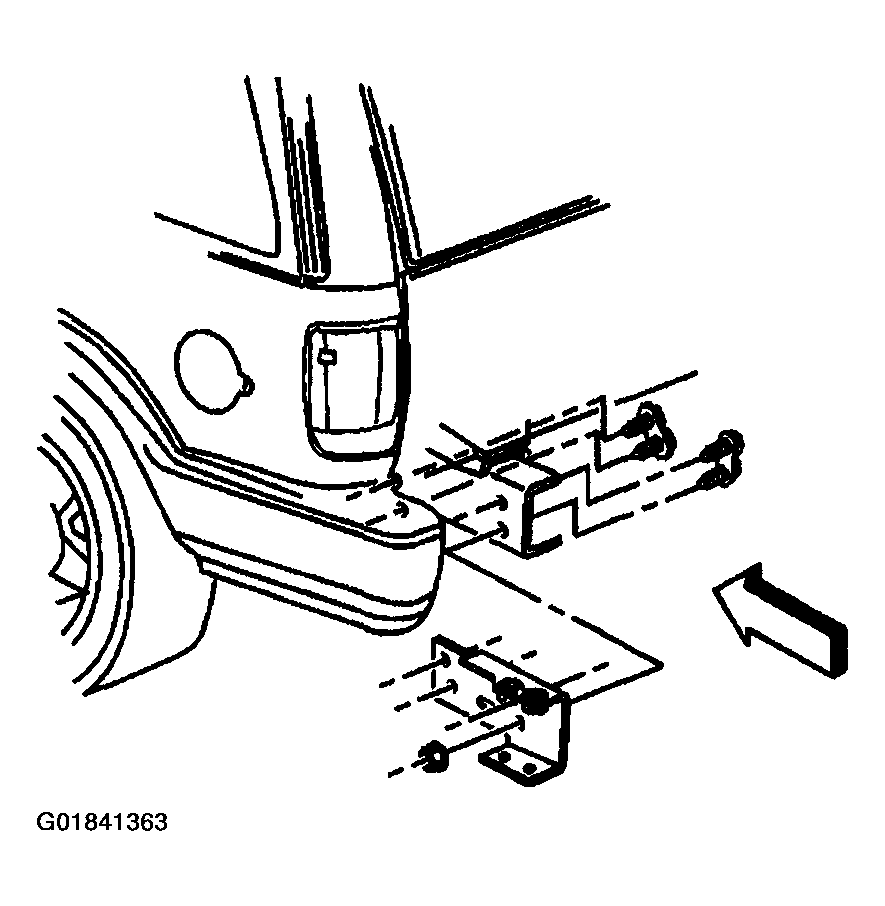

    4. Fig 1: Locating Rear Bumper Bracket (Utility)
    G01841363Courtesy of GENERAL MOTORS CORP.
