Installation Procedure

NOTE: Refer to FASTENER NOTICE in CAUTIONS & NOTICES article.
  1. Install the rear bumper bracket to each frame rail with 4 nuts and 2 stud plate assemblies.

    Tighten

    Tighten the rear bumper bracket nuts to 90 N.m (66.4 lb ft).

  2. Install the rear bumper impact bar. Refer to IMPACT BAR REPLACEMENT - REAR BUMPER (PICKUP)  or IMPACT BAR REPLACEMENT - REAR BUMPER (UTILITY) .

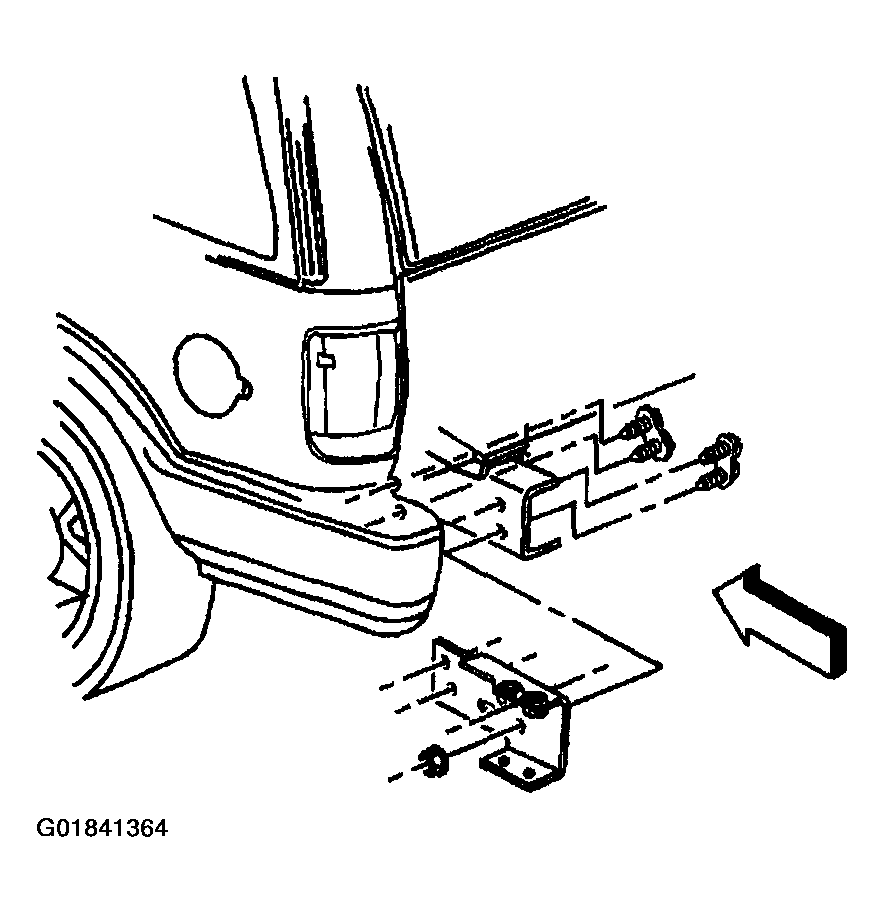

    3. Fig 1: Locating Rear Bumper Bracket (Utility)
    G01841364Courtesy of GENERAL MOTORS CORP.
