Removal Procedure

  1. Remove the nut and the bolt that retain the brace to the impact bar.

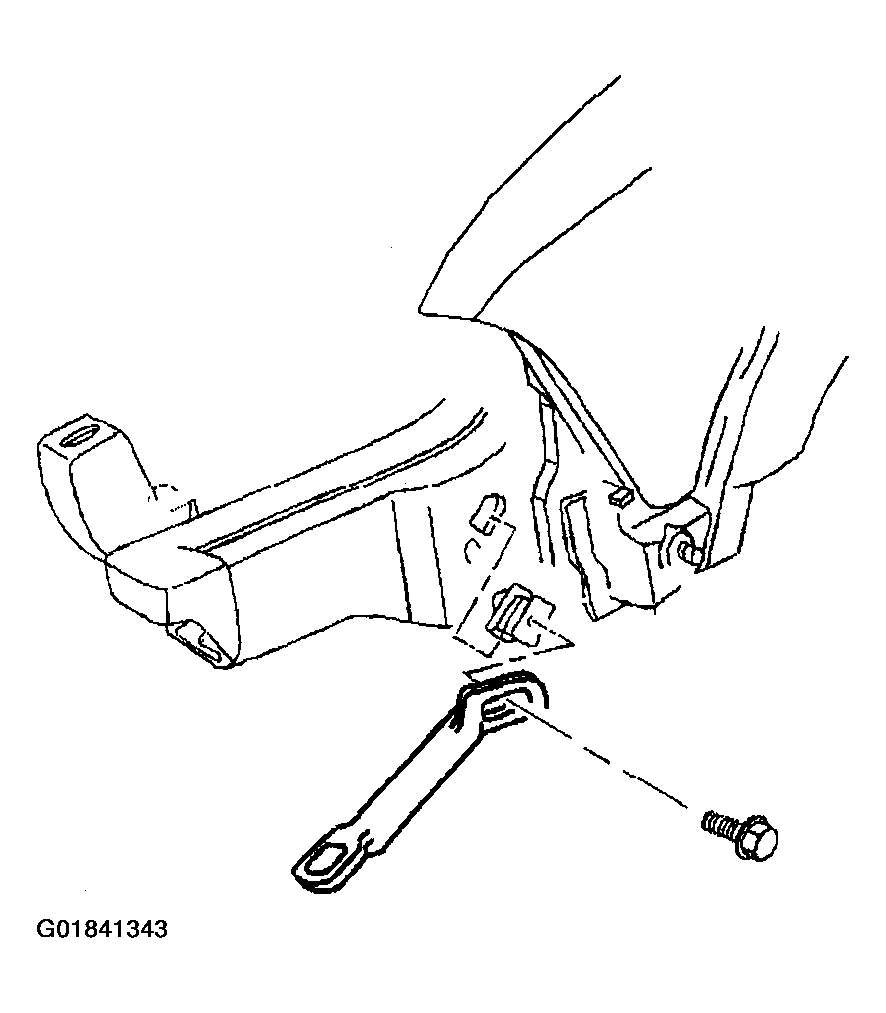

    Fig 1: Locating Front Bumper Brace (GMC)
    G01841343Courtesy of GENERAL MOTORS CORP.
  2. Remove the nut and the bolt that retain the brace to the frame.
  3. Remove the brace from the vehicle.
