Removal Procedure

  1. Remove the nut and the bolt that retain the brace to the impact bar.

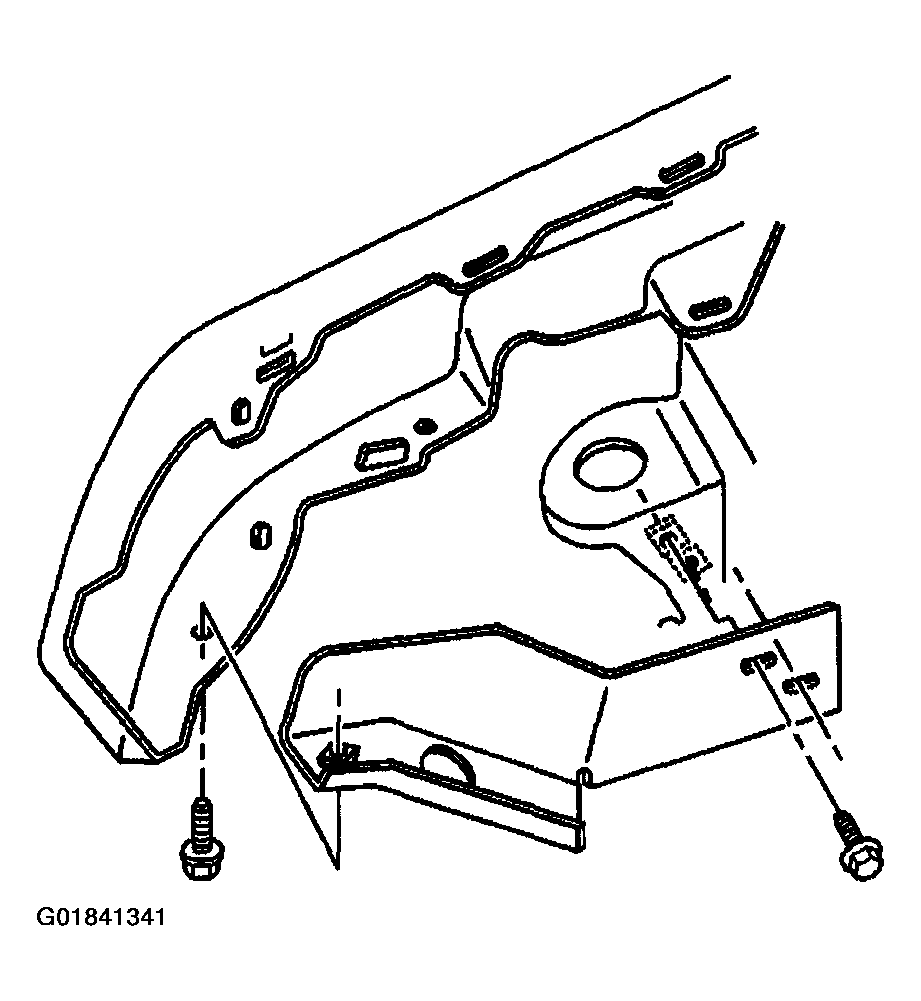

    Fig 1: Locating Front Bumper Brace (Chevrolet)
    G01841341Courtesy of GENERAL MOTORS CORP.
  2. Remove the 2 nuts and bolts that retain the brace to the frame.
  3. Remove the brace from the vehicle.
