Installation Procedure

  1. Install the brace to the vehicle.
  2. Install the 2 nuts and bolts that retain the brace to the bumper frame.
    NOTE: Refer to FASTENER NOTICE in CAUTIONS & NOTICES article.
  3. Install the nut and the bolt that retain the brace to the bumper impact bar.

    Tighten

    Tighten the front bumper brace bolts to 40 N.m (30 lb ft).

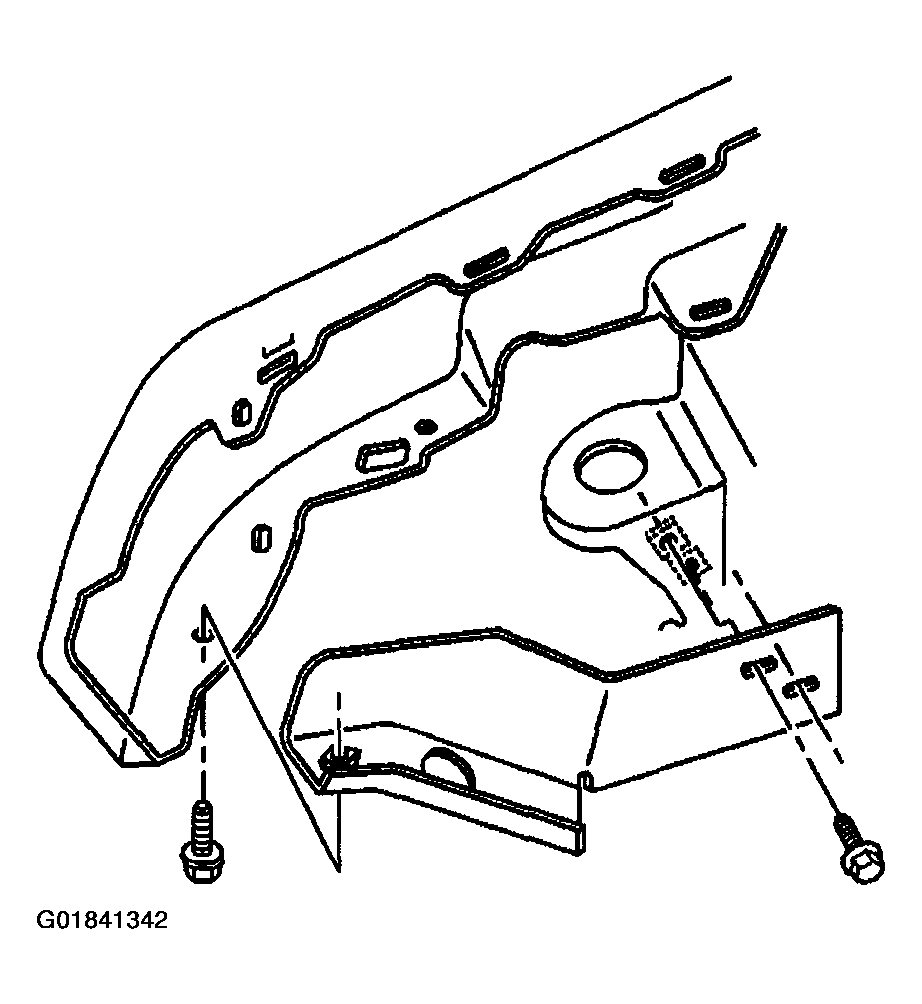

    4. Fig 1: Locating Front Bumper Brace (Chevrolet)
    G01841342Courtesy of GENERAL MOTORS CORP.
