Installation Procedure

Install the fog lamps to the deflector, if equipped. Refer to the appropriate procedure in Lighting Systems:
- HEADLAMP REPLACEMENT in EXTERIOR LIGHTS article.
- FOG LAMP REPLACEMENT - FRONT (XTREME) in EXTERIOR LIGHTS article.
Install the deflector to the vehicle. Ensure that the retainers lock into position.
Install the license plate bracket, if equipped. Refer to LICENSE BRACKET REPLACEMENT - FRONT .
Install 2 air deflector push-in retainers, one on either end of the deflector.

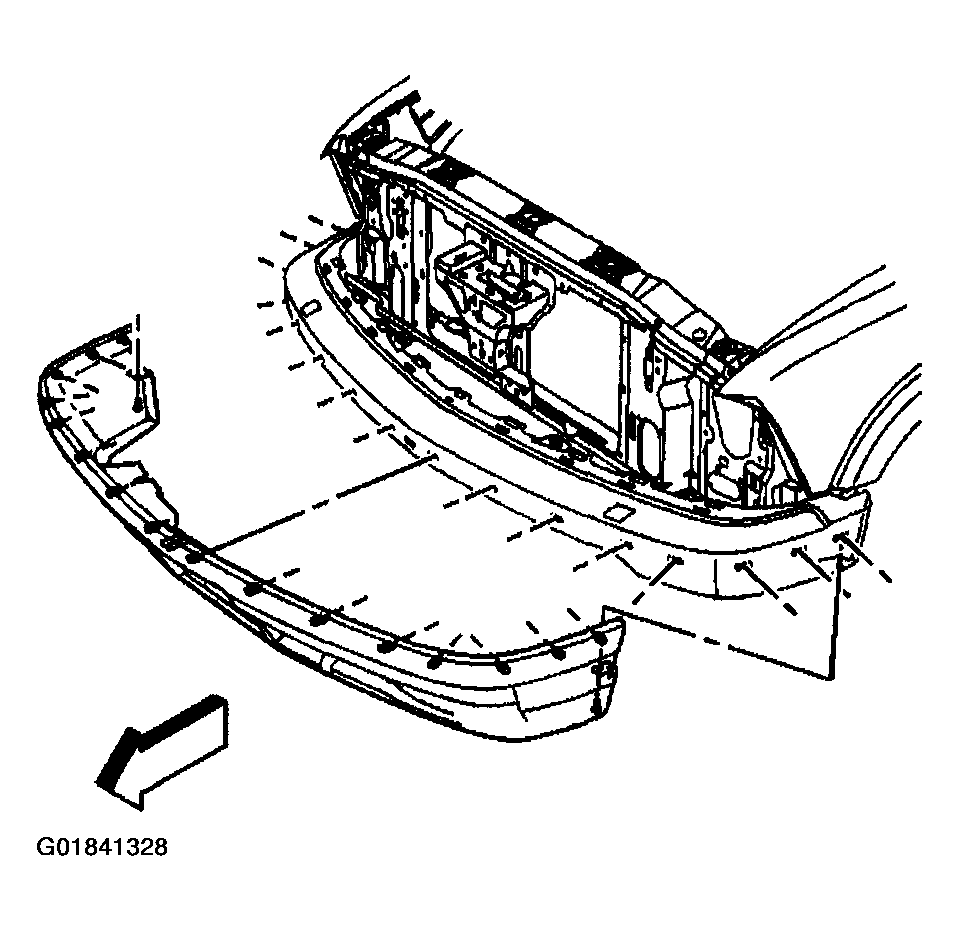

Fig 1: Locating Air Deflector Front Bumper Fascia Push-In Retainers (Pickups & Utilities)
Courtesy of GENERAL MOTORS CORP.
Install the front bumper to the vehicle. Refer to IMPACT BAR REPLACEMENT - FRONT BUMPER .
