Removal Procedure

Remove the front bumper from the vehicle. Refer to IMPACT BAR REPLACEMENT - FRONT BUMPER .
Remove the license plate bracket, if equipped. Refer to LICENSE BRACKET REPLACEMENT - FRONT .
Remove 6 push-in retainers securing the deflector to the bumper.

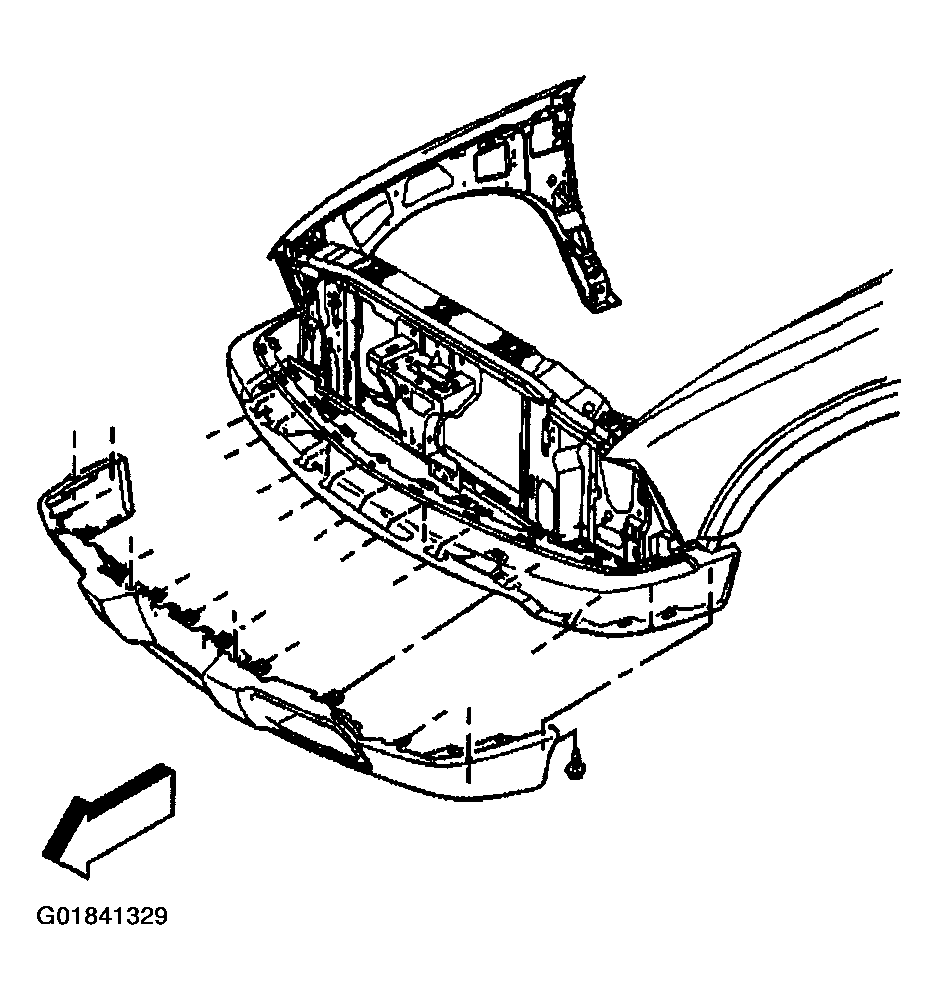

Fig 1: Locating Air Deflector Front Bumper Fascia Push-In Retainers (Optional)
Courtesy of GENERAL MOTORS CORP.
Pull the air deflector retainers from the slots in the bumper.
Remove the deflector from the vehicle.
Remove the fog lamps from the deflector, if equipped. Refer to the appropriate procedure in Lighting Systems:
- HEADLAMP REPLACEMENT in EXTERIOR LIGHTS article.
- FOG LAMP REPLACEMENT - FRONT (XTREME) in EXTERIOR LIGHTS article.
