Installation Procedure

Install the fog lamps to the deflector, if equipped. Refer to the appropriate procedure in Lighting Systems:
- HEADLAMP REPLACEMENT in EXTERIOR LIGHTS article.
- FOG LAMP REPLACEMENT - FRONT (XTREME) in EXTERIOR LIGHTS article.
Install the deflector to the vehicle. Ensure that the snap retainers lock into position.
Install 6 push-in air deflector retainers securing the deflector to the bumper.

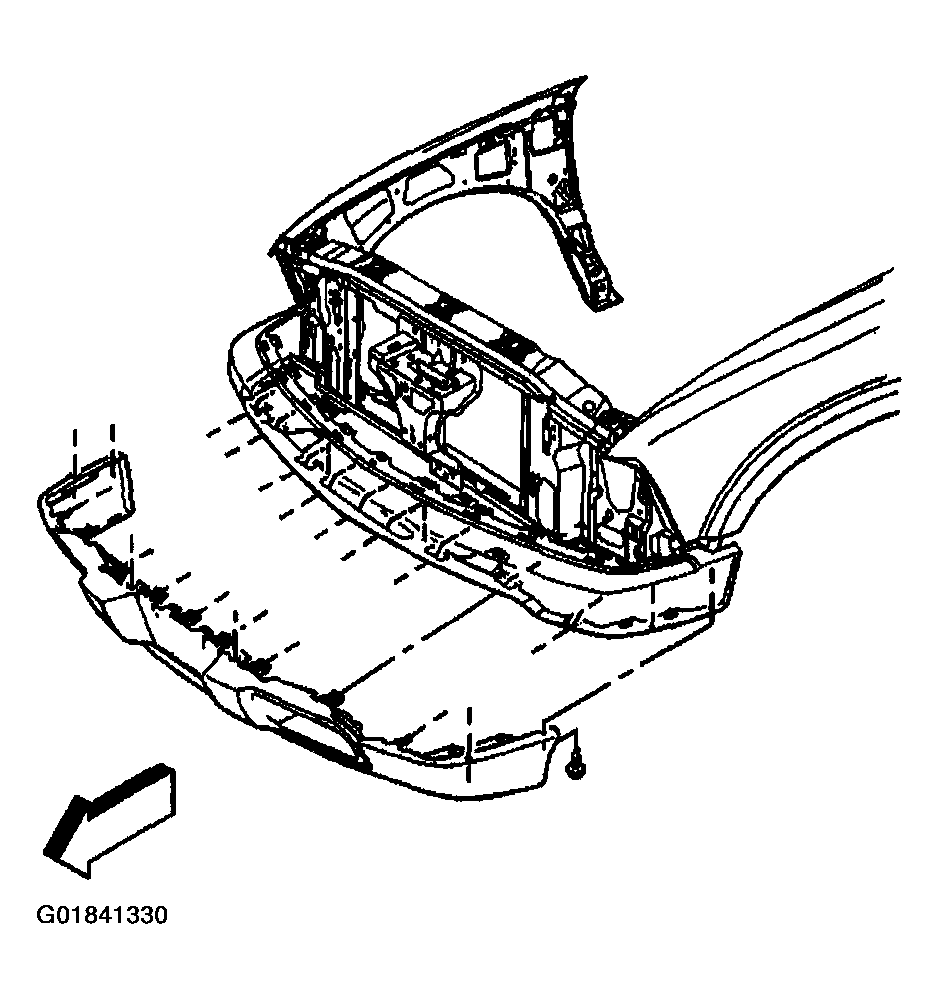

Fig 1: Locating Air Deflector Front Bumper Fascia Push-In Retainers (Optional)
Courtesy of GENERAL MOTORS CORP.
Install the license plate bracket, if equipped. Refer to LICENSE BRACKET REPLACEMENT - FRONT .
Install the front bumper to the vehicle. Refer to IMPACT BAR REPLACEMENT - FRONT BUMPER .
