Body Rear End Schematics (Output)

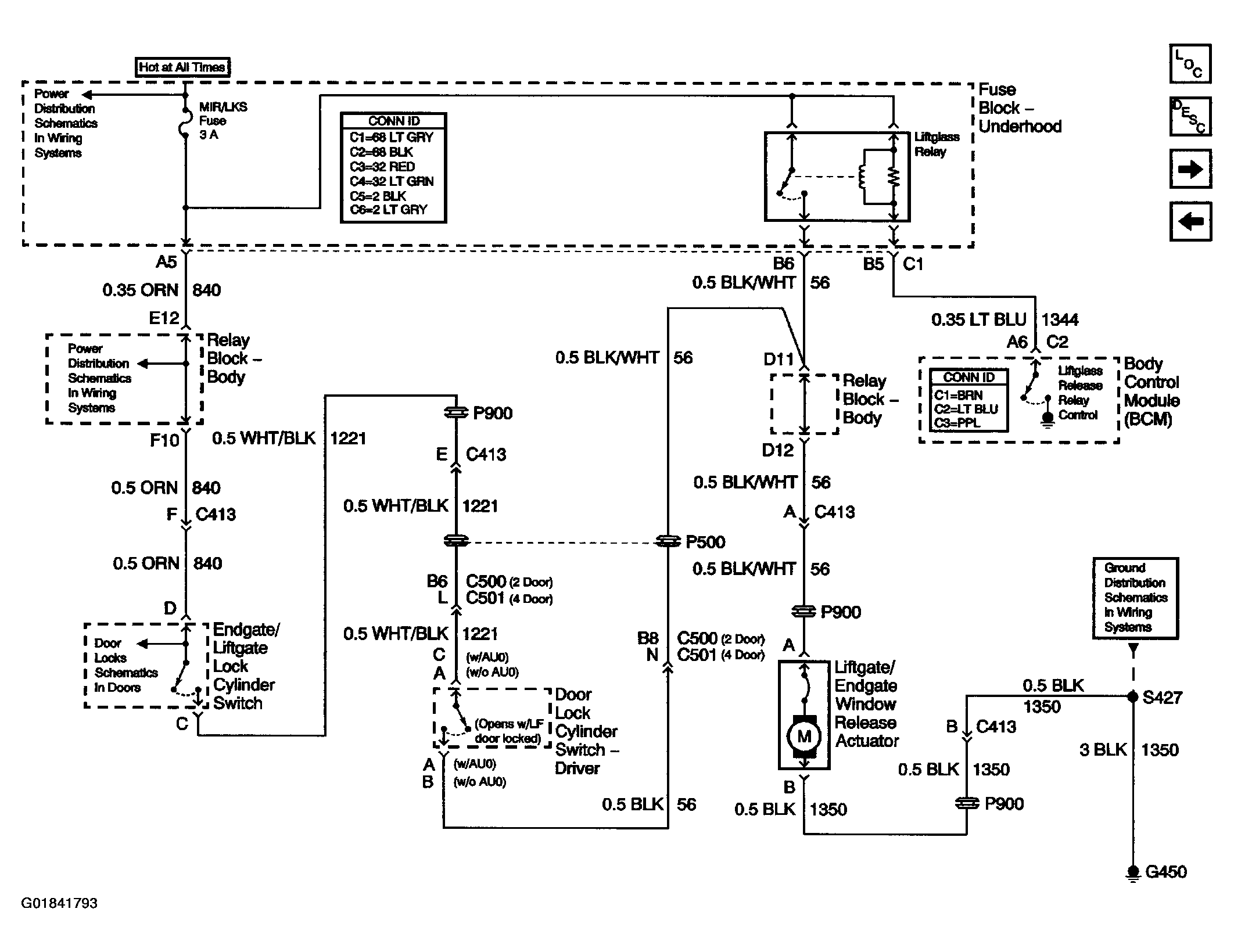

Fig 1: Body Rear End Schematics (Output)

G01841793

Courtesy of GENERAL MOTORS CORP.
