Body Rear End Schematics (Input)

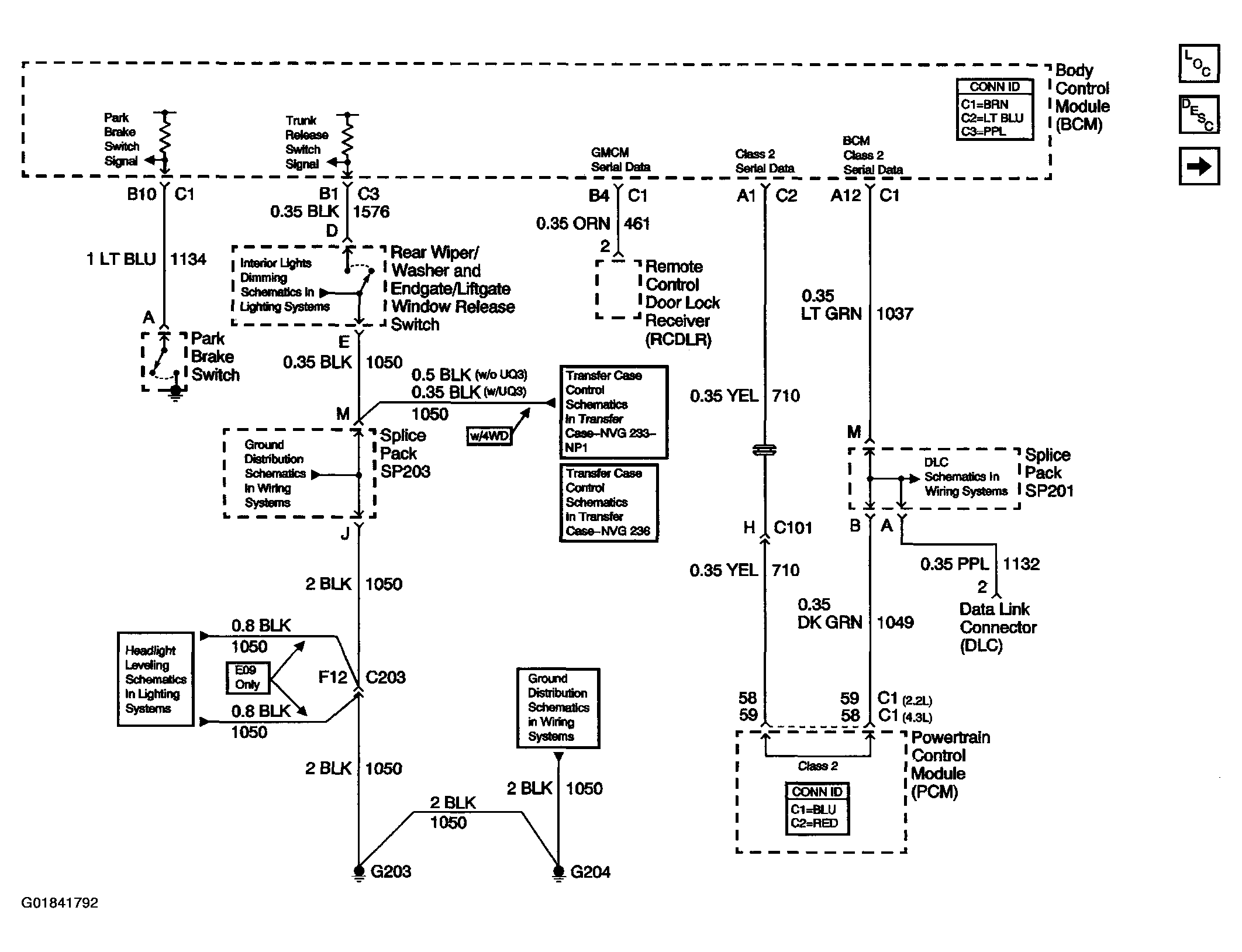

Fig 1: Body Rear End Schematics (Input)

G01841792

Courtesy of GENERAL MOTORS CORP.
