Body Rear End Schematics (Gate Ajar Indicator)

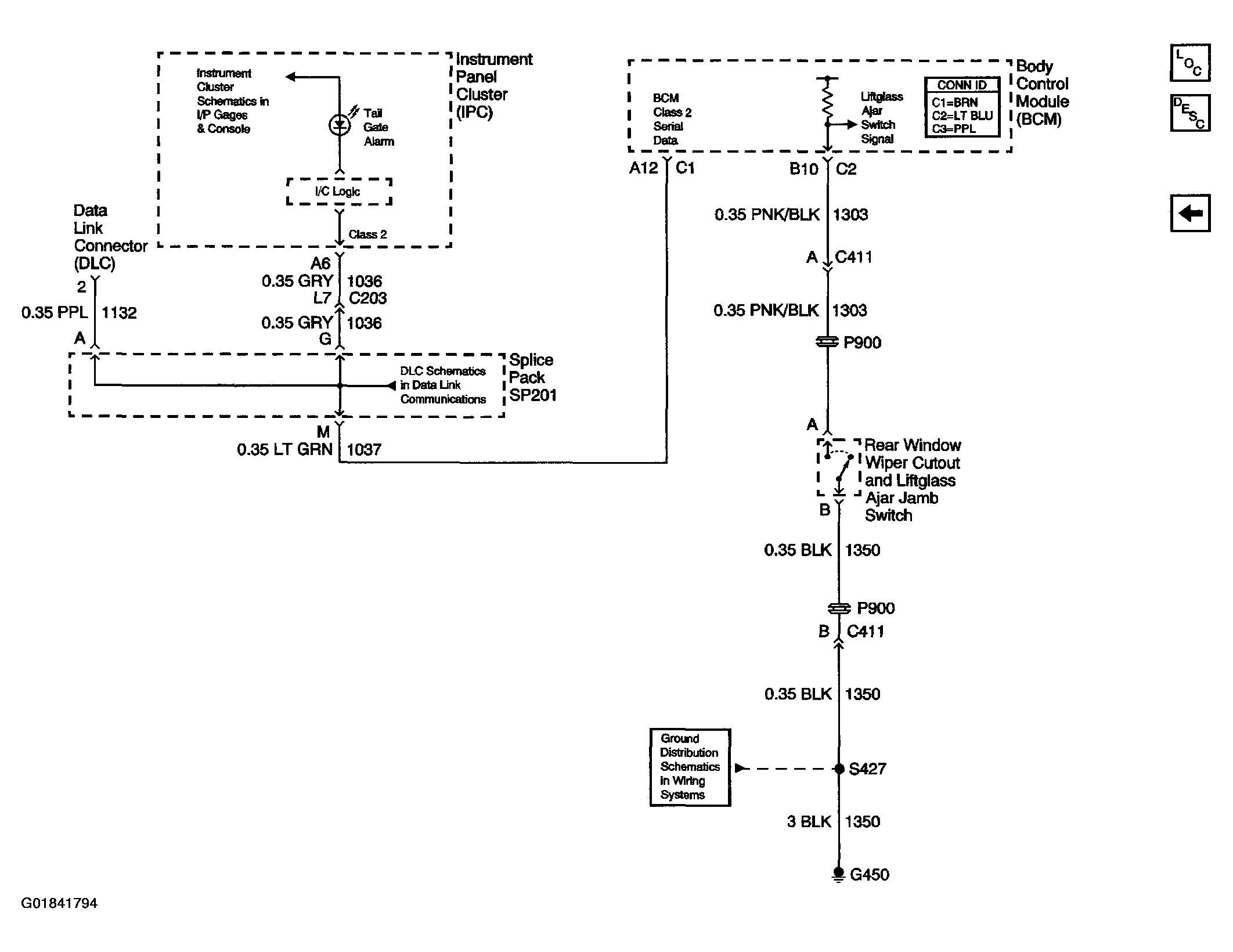

Fig 1: Body Rear End Schematics (Gate Ajar Indicator)

G01841794

Courtesy of GENERAL MOTORS CORP.
