Installation Procedure

  1. With an assistant, install the liftgate window to the liftgate.
  2. Install the liftgate window hinge pins.
  3. Install the new liftgate window hinge pin retainers.
  4. Install the liftgate window struts. Refer to STRUT REPLACEMENT - LIFT GATE WINDOW .
  5. Connect the liftgate window defogger electrical connectors, if equipped.
  6. Install the high mount stoplamp spoiler assembly to the liftgate window. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT (PICKUP) or HIGH MOUNTED STOP LAMP REPLACEMENT (UTILITY - ROOF MOUNTED) or HIGH MOUNTED STOP LAMP REPLACEMENT (UTILITY - ENDGATE WINDOW) in EXTERIOR LIGHTS article.

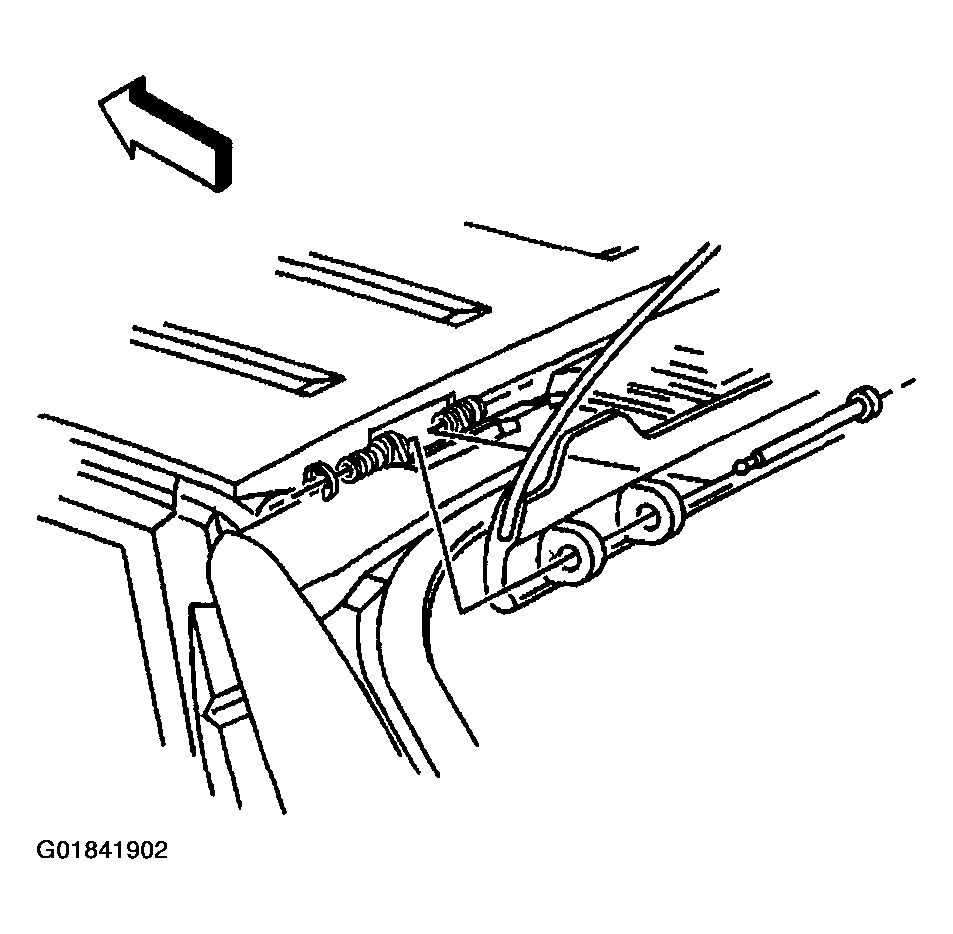

    Fig 1: Locating Liftgate Window Hinge Pin Retainers
    G01841902Courtesy of GENERAL MOTORS CORP.
