Removal Procedure

  1. Open the endgate or the liftgate.
  2. Remove the weather-strip molding from the pinch-weld flange.
  3. Firmly grip the weather-strip.
  4. Pull the weather-strip out and away from the vehicle.

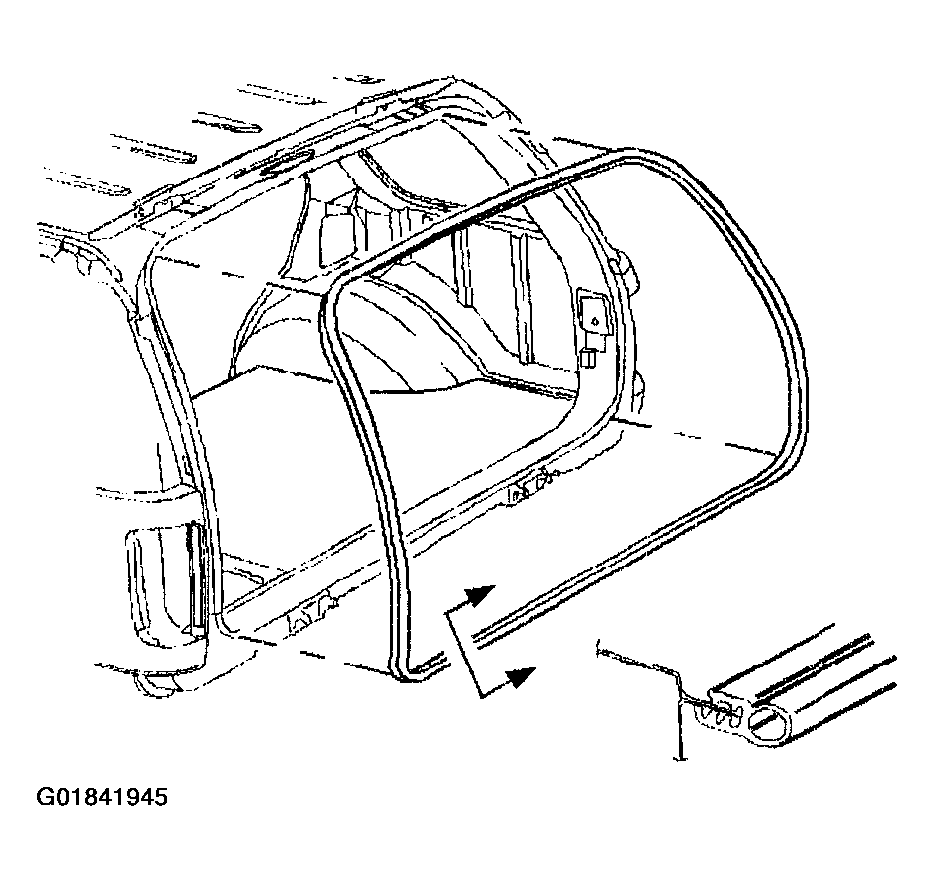

    5. Fig 1: Locating Lift Gate Weatherstrip
    G01841945Courtesy of GENERAL MOTORS CORP.
