Installation Procedure

  1. Push the weather-strip onto the pinch weld flange, beginning from the top corner of the endgate opening.
  2. Completely seat the weather-strip around the endgate or the litigate opening.

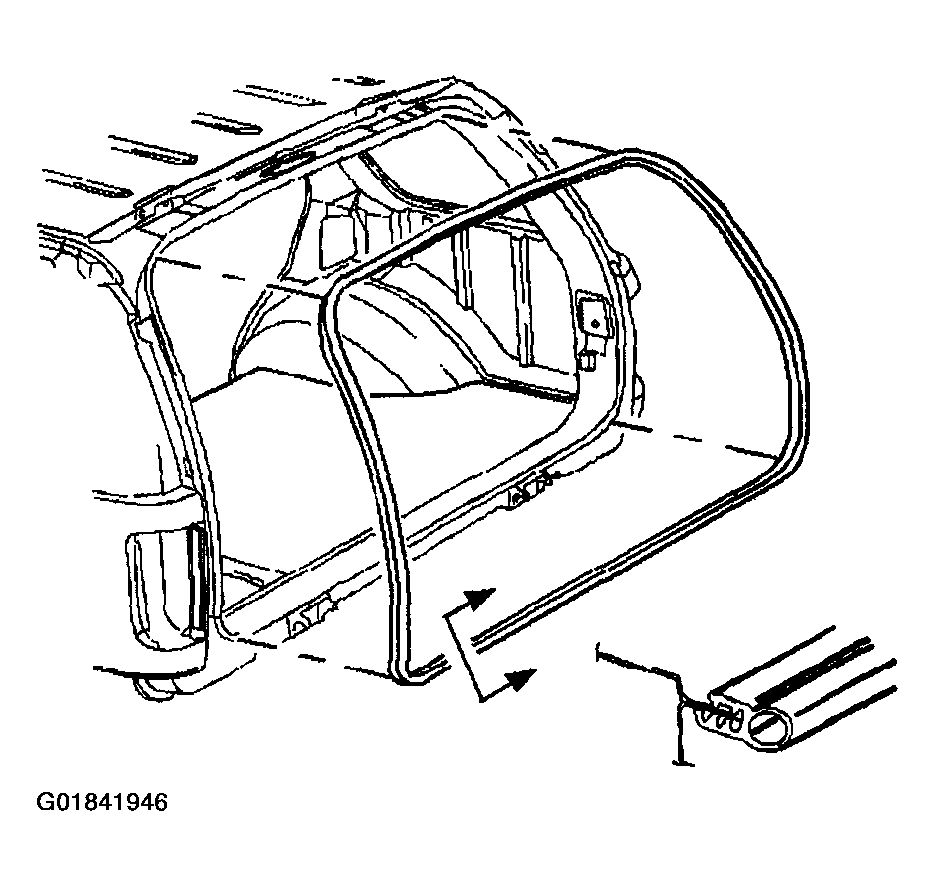

    3. Fig 1: Locating Lift Gate Weatherstrip
    G01841946Courtesy of GENERAL MOTORS CORP.
