Removal Procedure

In order to remove the liftgate window weather-strip from the pinch-weld flange, perform the following steps:

  1. Open the liftgate window.
  2. Firmly grip the weather-strip.
  3. Pull the weather-strip.

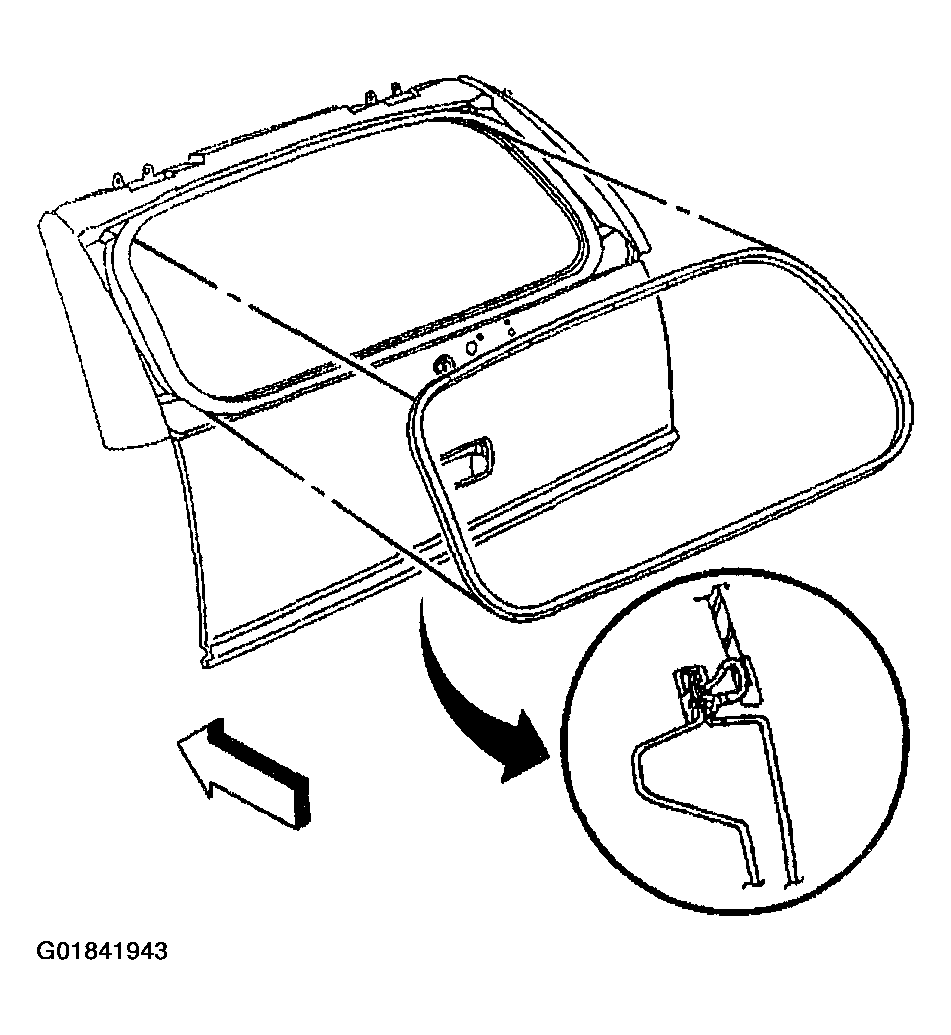

    4. Fig 1: Locating End Gate Weatherstrip
    G01841943Courtesy of GENERAL MOTORS CORP.
