Installation Procedure

  1. Open the liftgate window.
  2. Push the weather-strip onto the pinch-weld flange.

    Begin with the pre-formed comer at either upper corner of the liftgate window opening.

  3. Completely seat the weather-strip around the liftgate window opening.

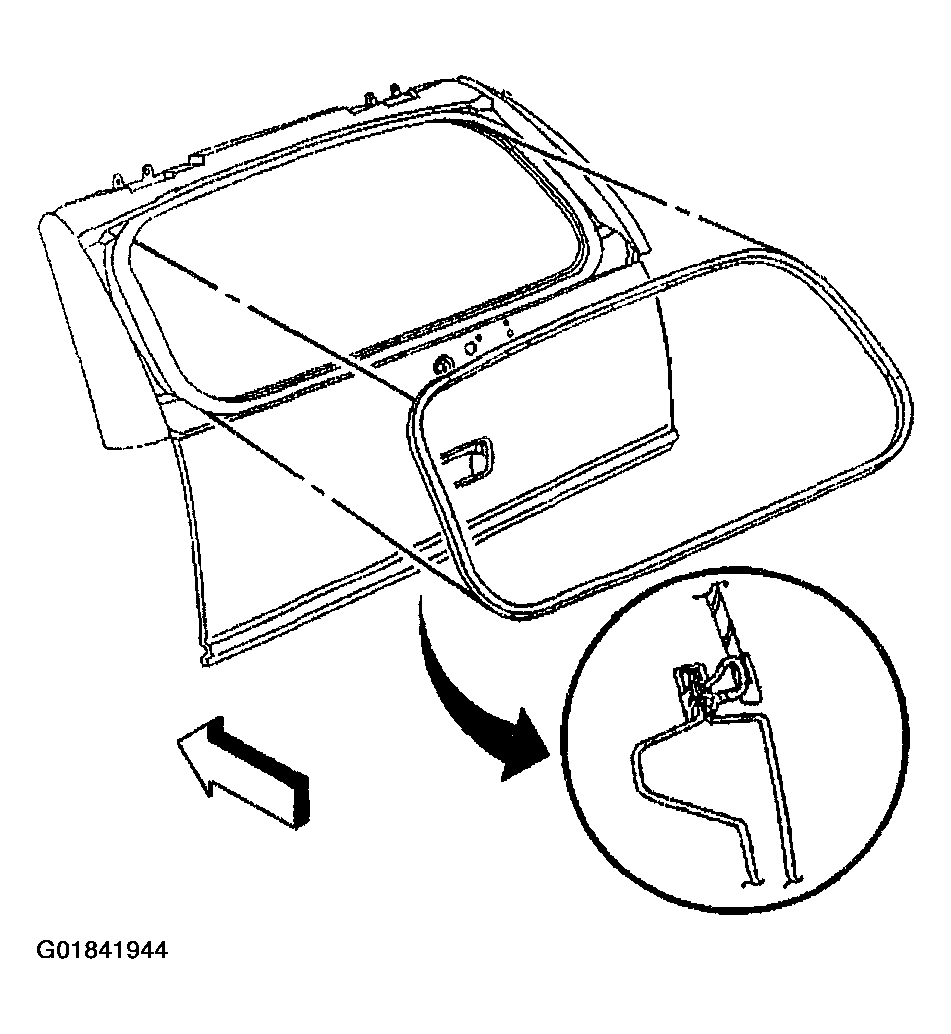

    Fig 1: Locating End Gate Weatherstrip
    G01841944Courtesy of GENERAL MOTORS CORP.
