Removal Procedure

  1. Open the endgate.
  2. Starting at the corner of the endgate flange, pull the weatherstrip molding from the endgate.

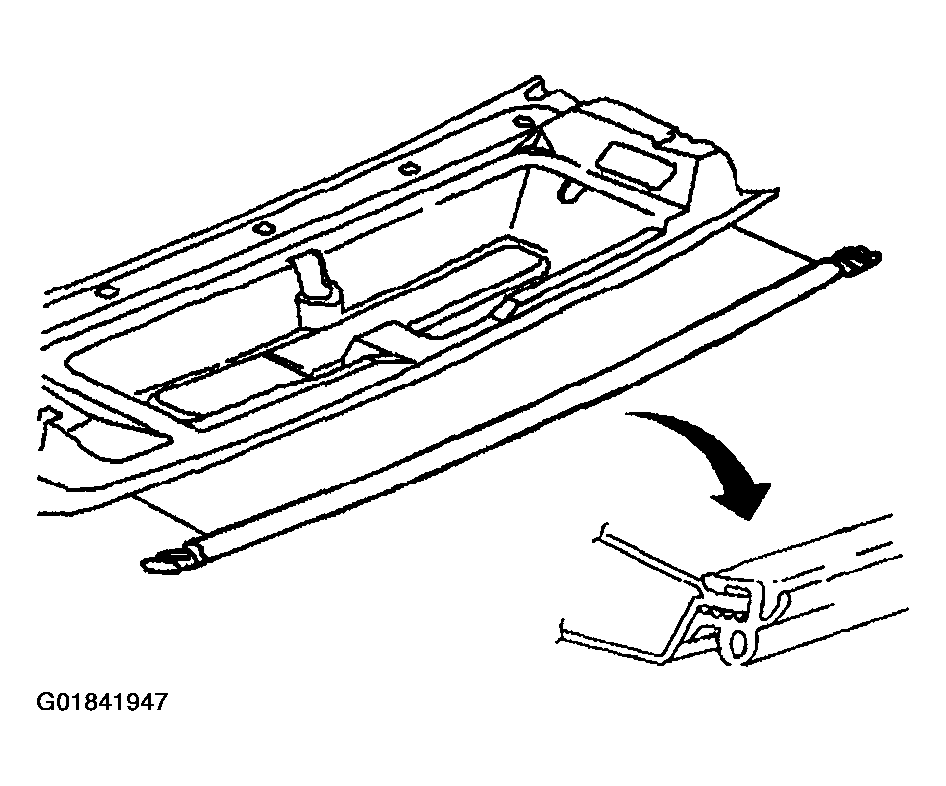

    3. Fig 1: Locating End Gate Window Weatherstrip
    G01841947Courtesy of GENERAL MOTORS CORP.
