Installation Procedure

  1. Push the ends of the weatherstrip onto the endgate flange corners.
  2. Push the weatherstrip molding onto the flange along the entire length of the endgate.

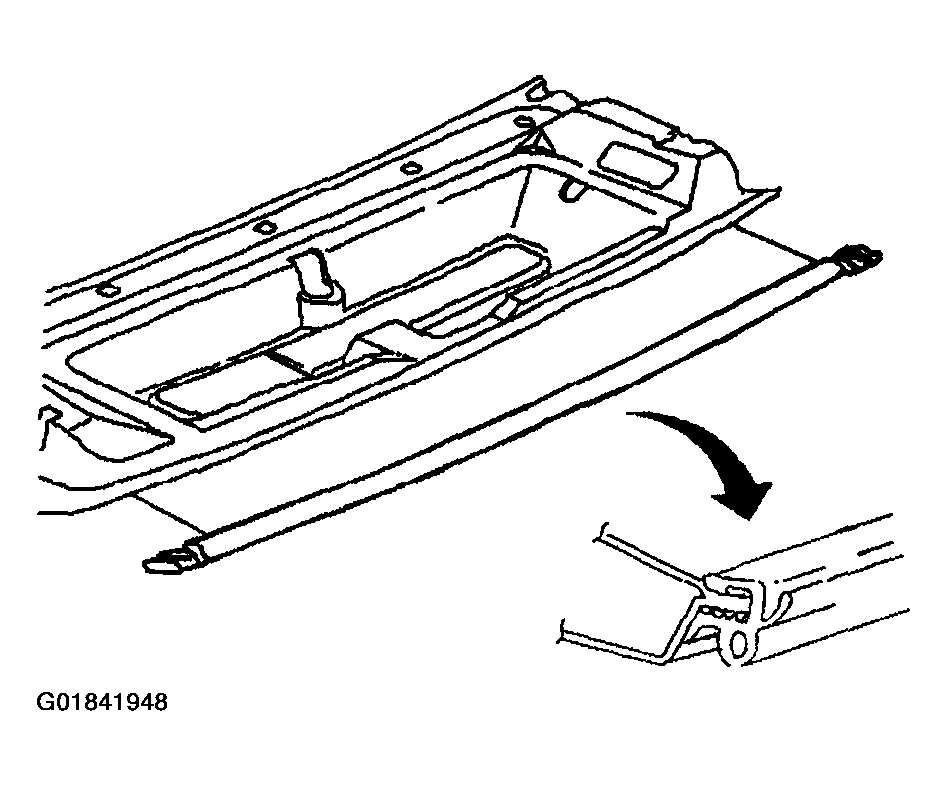

    3. Fig 1: Locating End Gate Window Weatherstrip
    G01841948Courtesy of GENERAL MOTORS CORP.
