Removal Procedure

  1. Open the liftgate window.
  2. Remove the screw retaining the liftgate trim panel to the liftgate window latch support.
  3. Open the liftgate.
  4. Remove the pullstrap. Refer to PULLSTRAP REPLACEMENT - LIFT GATE .
  5. Remove the trim panel from the liftgate.

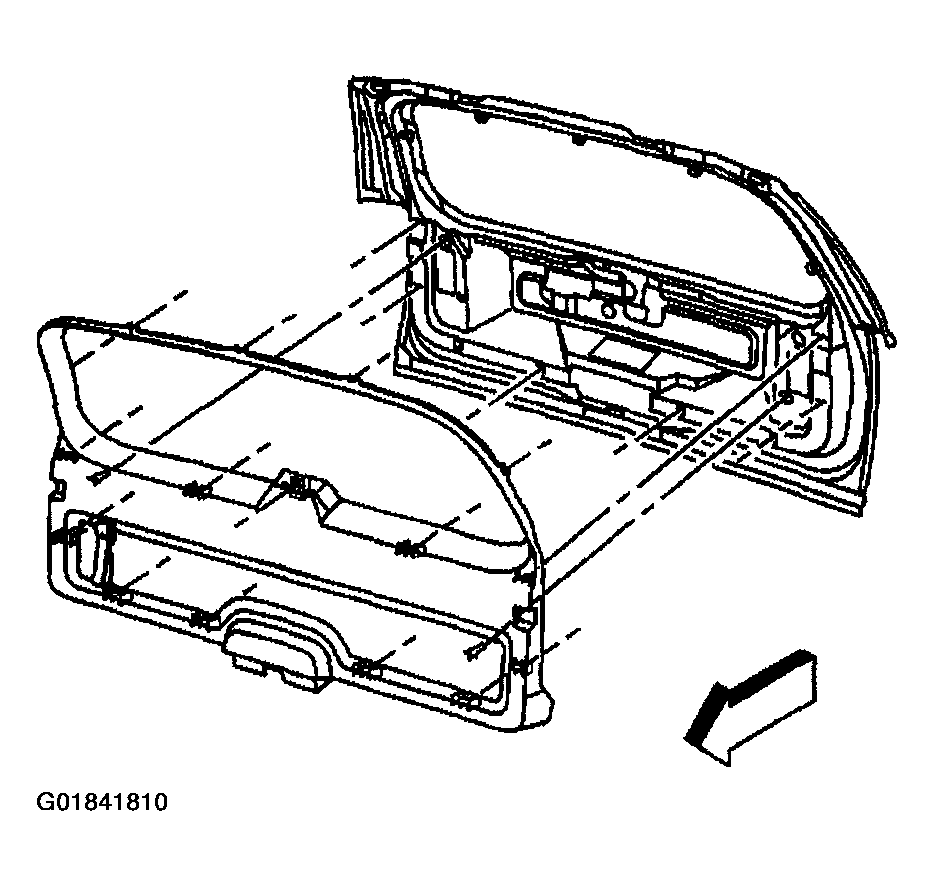

    Fig 1: Locating Liftgate Trim Panel Components
    G01841810Courtesy of GENERAL MOTORS CORP.
