Removal Procedure

  1. Open the endgate.
  2. Remove the screws that retain the inside handle to the endgate.
  3. Remove the endgate inside handle from the endgate.

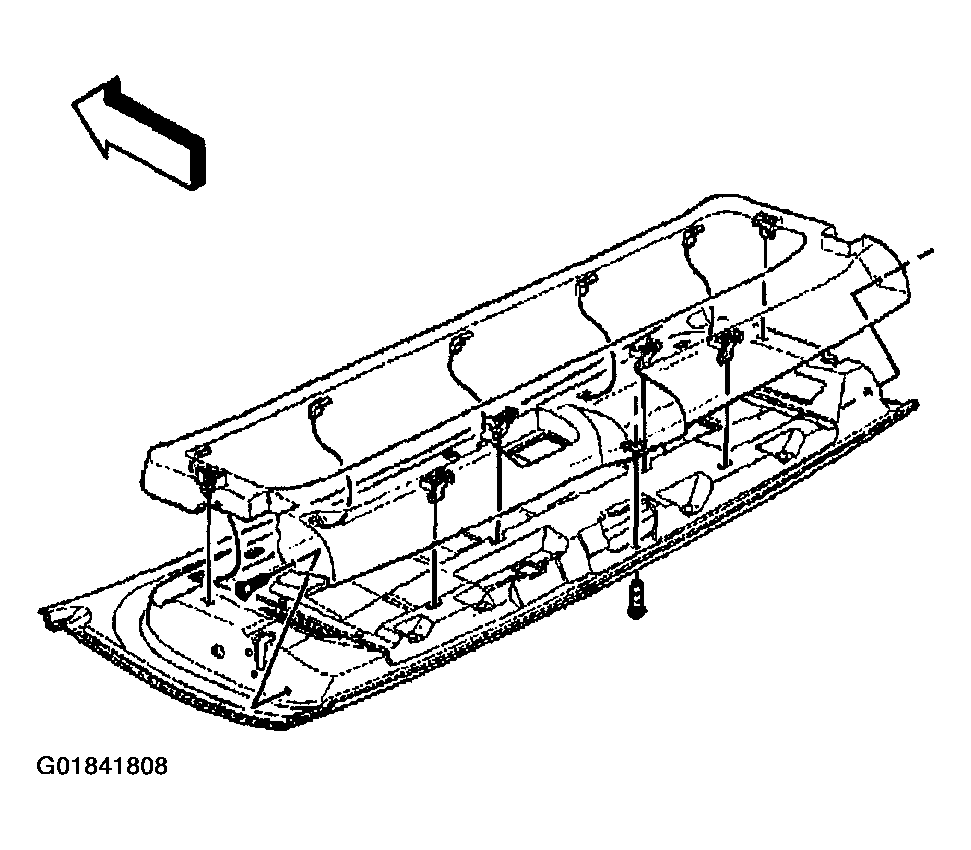

    Fig 1: Locating Endgate Trim Panel Components
    G01841808Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw that retains the endgate trim panel to the endgate window latch support.
  5. Remove the screws that retain the endgate trim panel to the endgate.
  6. Remove the endgate trim panel from the endgate:

    1. 6.1

      Release the retaining clips from the upper edge and the sides of the trim panel.

    2. 6.2

      Lift the panel up in order to release the tabs along the bottom edge.
