Installation Procedure

  1. Install the endgate trim panel to the endgate.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the screws that retain the endgate trim panel to the endgate.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

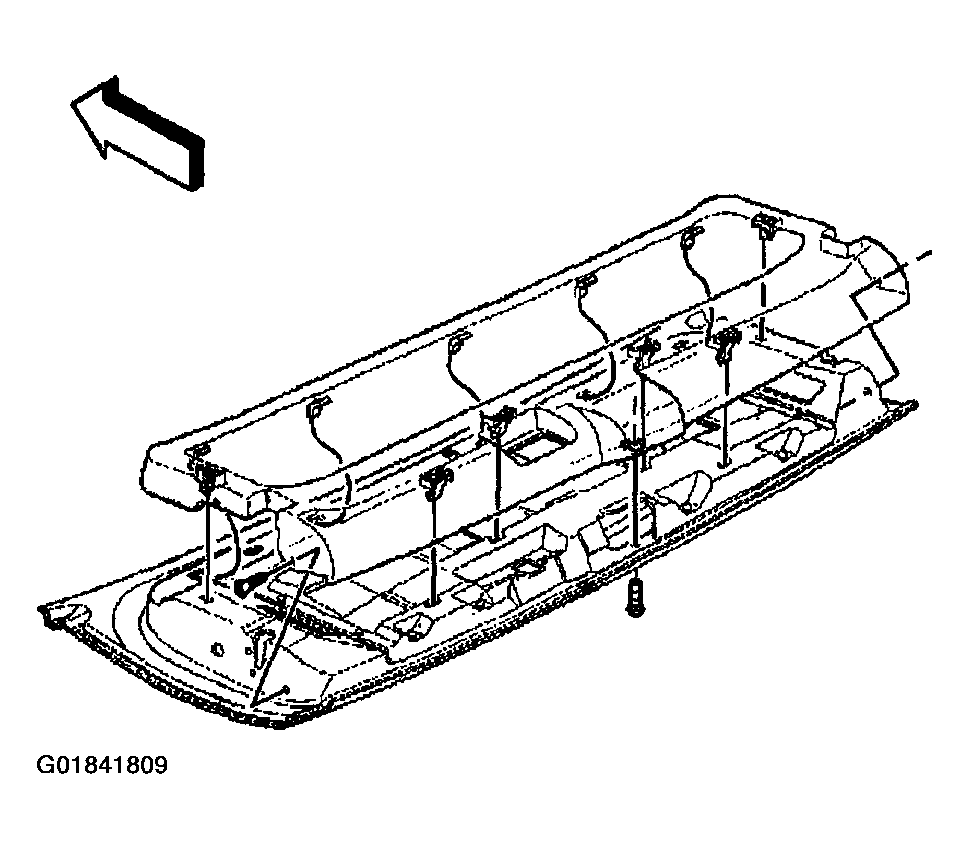

    Fig 1: Locating Endgate Trim Panel Components
    G01841809Courtesy of GENERAL MOTORS CORP.
  3. Install the screw that retains the endgate trim panel to the endgate window latch support.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

  4. Install the endgate inside handle to the endgate.

    Tighten

    Tighten the handle to 2.8 N.m (25 lb in).
