Installation Procedure

  1. Install the endgate torque rod.
  2. Install the endgate bracket.
  3. Install the insulator to the vehicle.

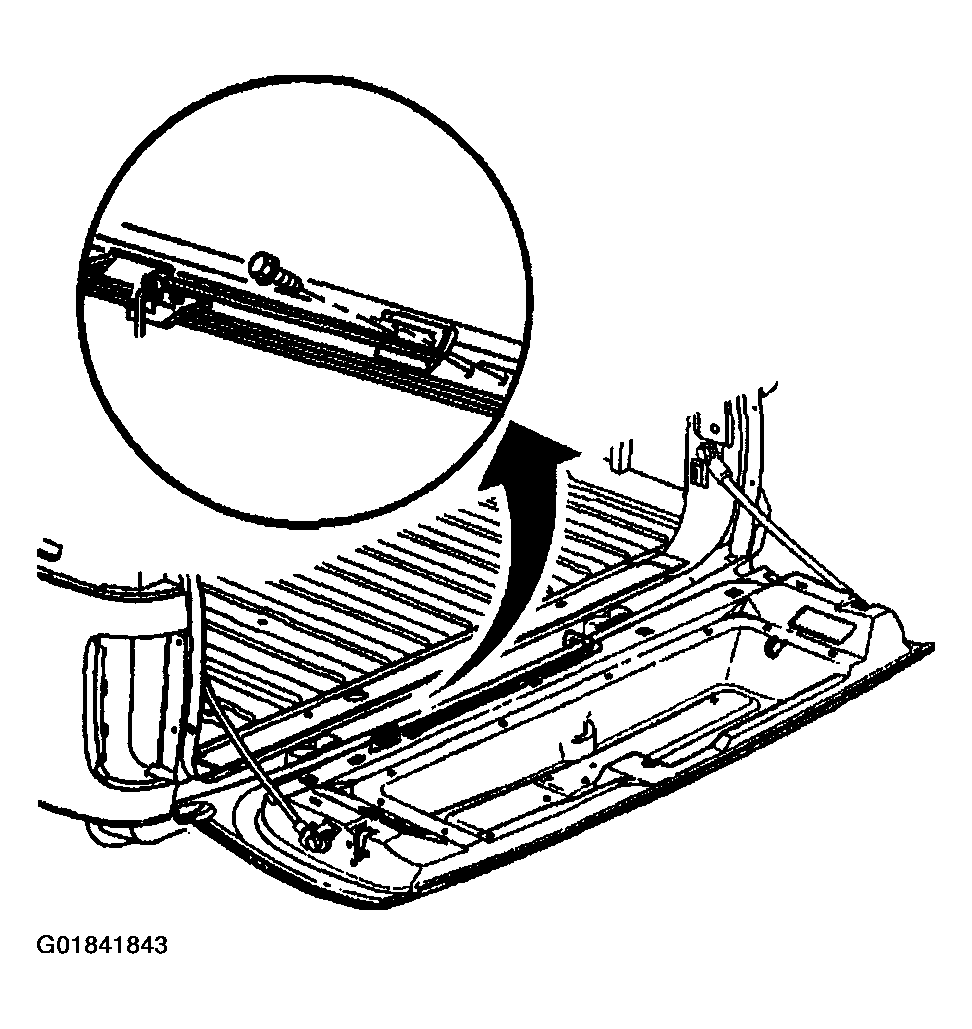

    Fig 1: Locating Endgate Torque Rod Insulator-To-Endgate Retaining Bolts
    G01841843Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  4. Install the bolts that retain the endgate torque rod bracket to the vehicle body.

    Tighten

    Tighten the bolts to 10 N.m (88 lb in).

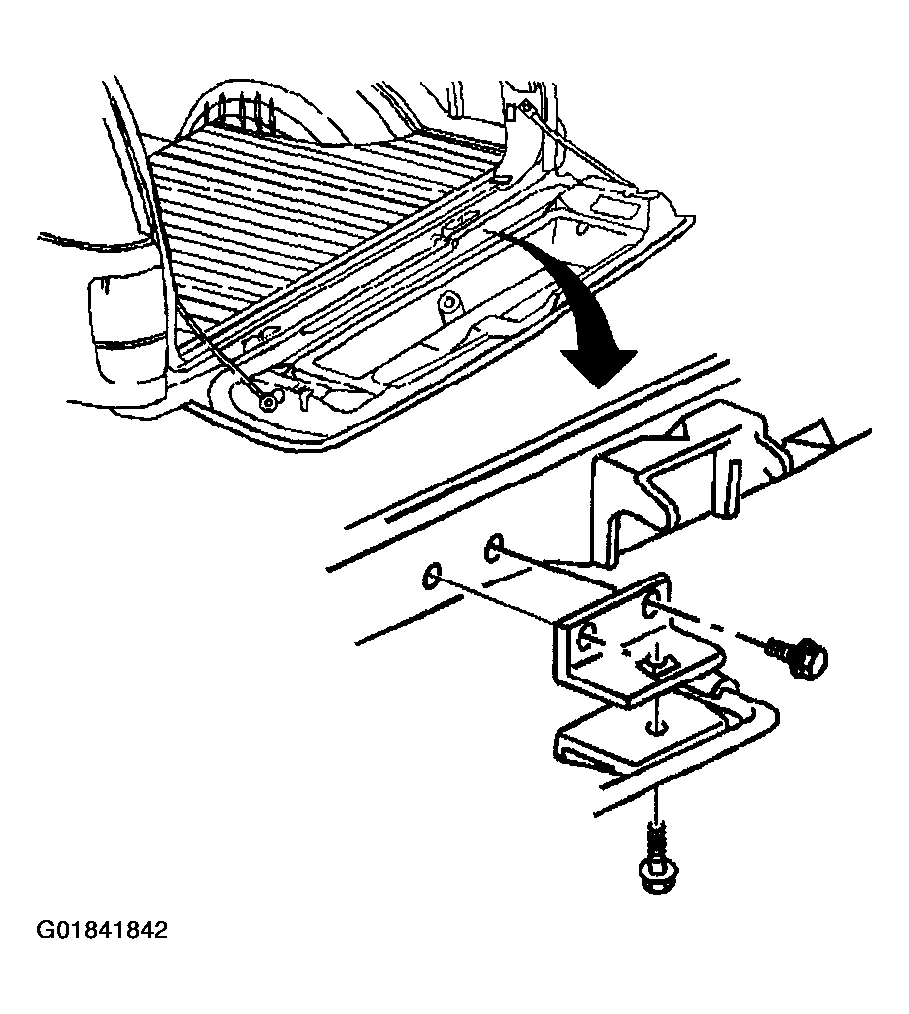

    Fig 2: Locating Endgate Torque Rod Bracket-To-Vehicle Body Retaining Bolts
    G01841842Courtesy of GENERAL MOTORS CORP.
