Removal Procedure

  1. Safely support the endgate in the open position.
  2. Remove the bolts that retain the endgate supports to the endgate.

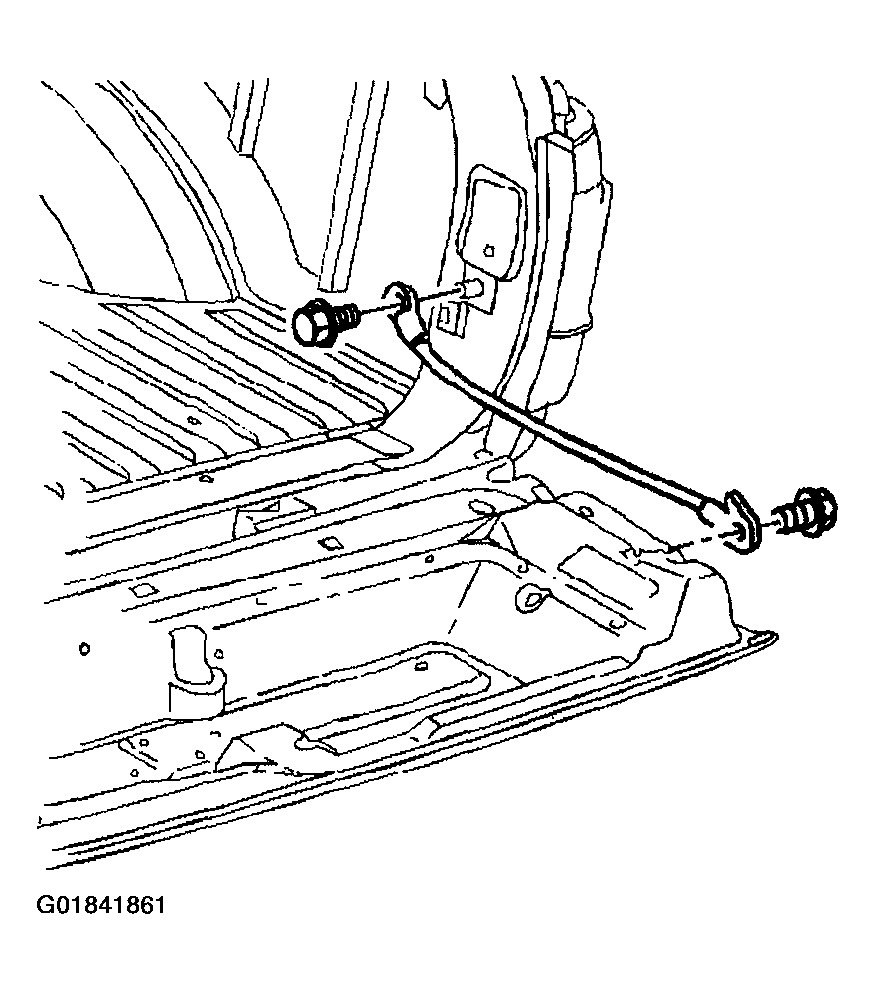

    Fig 1: Locating Endgate Support Cable Components (Utility)
    G01841861Courtesy of GENERAL MOTORS CORP.
  3. Remove the endgate supports from the vehicle.
