Installation Procedure

  1. Install the endgate supports to the vehicle.
  2. Install the bolts that retain the endgate supports to the endgate.

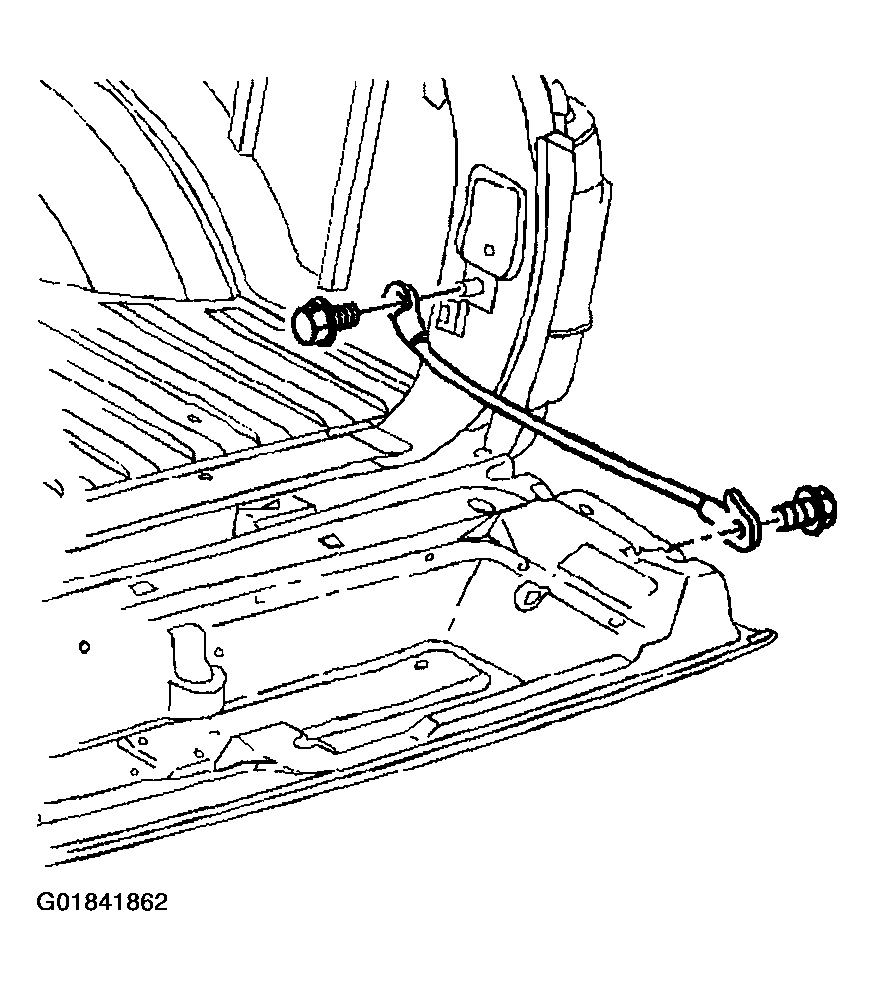

    Fig 1: Locating Endgate Support Cable Components (Utility)
    G01841862Courtesy of GENERAL MOTORS CORP.
  3. Close the endgate.
