Installation Procedure

  1. Install the endgate supports to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the bolts that retain the endgate supports to the vehicle.

    Tighten

    Tighten the bolts to 2.8 N.m (25 lb in).

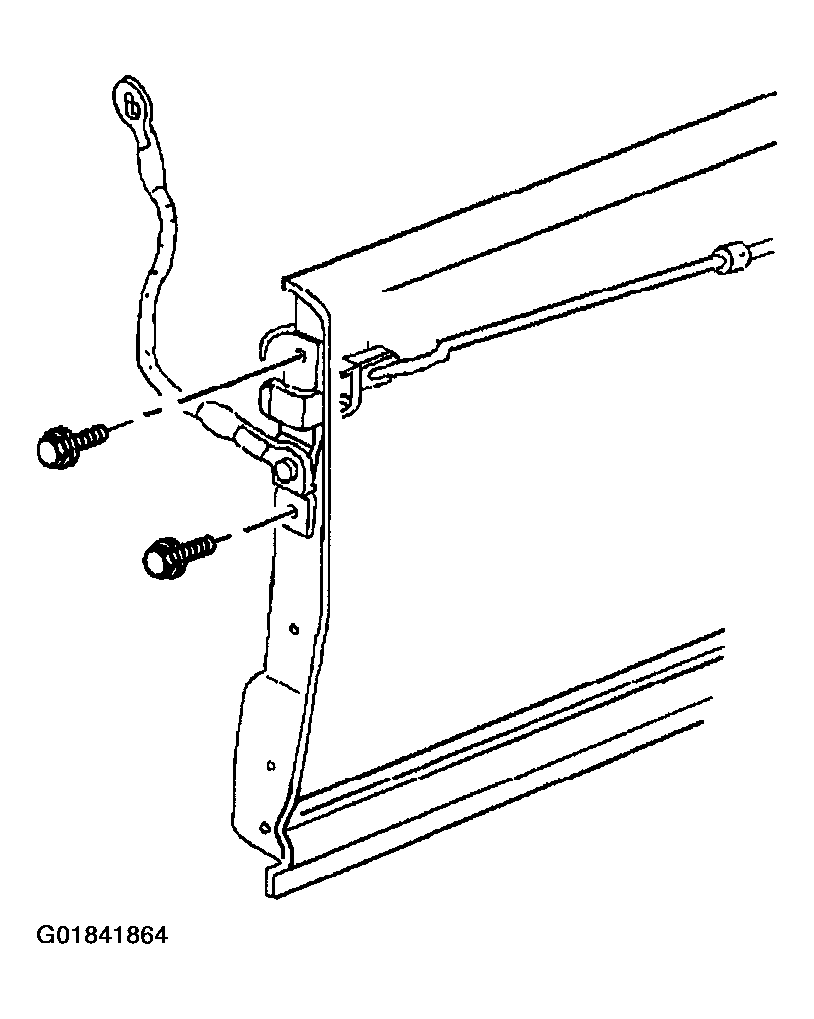

    Fig 1: Locating Endgate Support Cable Components (Pickup)
    G01841864Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts that retain the endgate supports to the endgate.

    Tighten

    Tighten the bolts to 2.8 N.m (25 lb in).
