Removal Procedure

  1. Open and support the endgate window.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Lift up the retainer clips on the endgate window struts using a small flat-bladed tool.

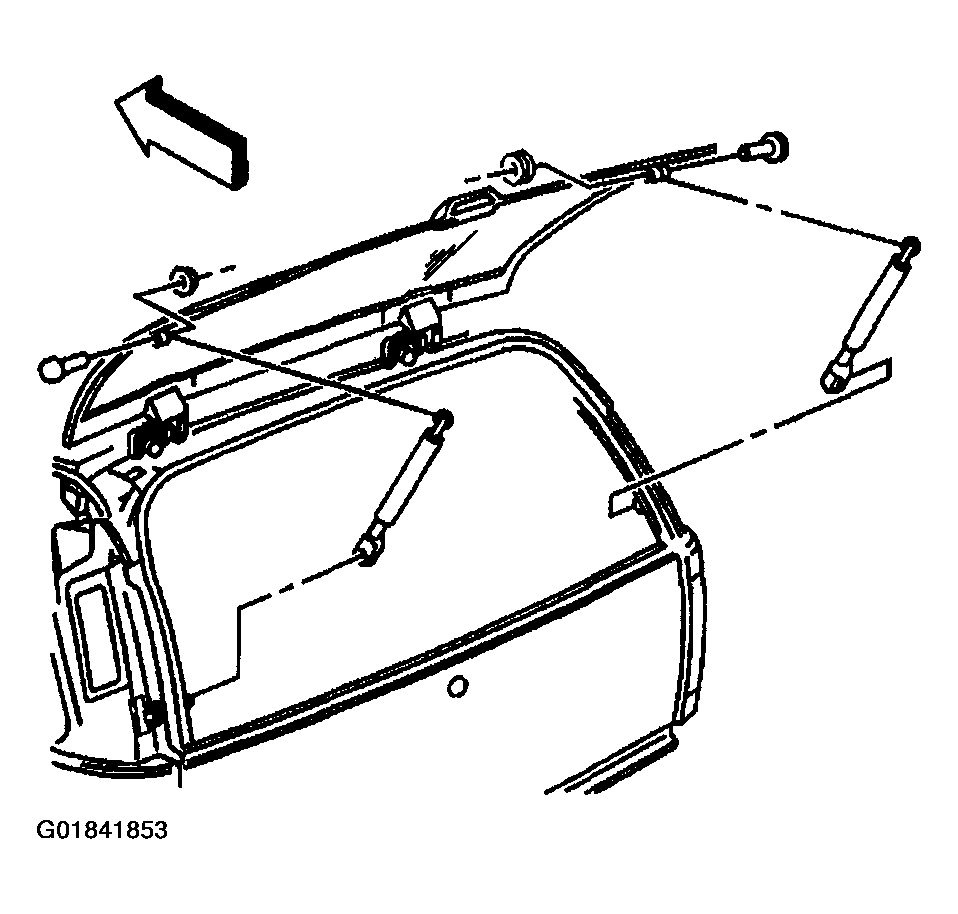

    Fig 1: Locating Rear Lift Window Panel Strut Components (4-Door)
    G01841853Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper end of the endgate window struts from the ball joint.
  4. Remove the lower end of the endgate window struts from the ball joint.
