Installation Procedure

  1. Position the endgate window struts to the endgate window.

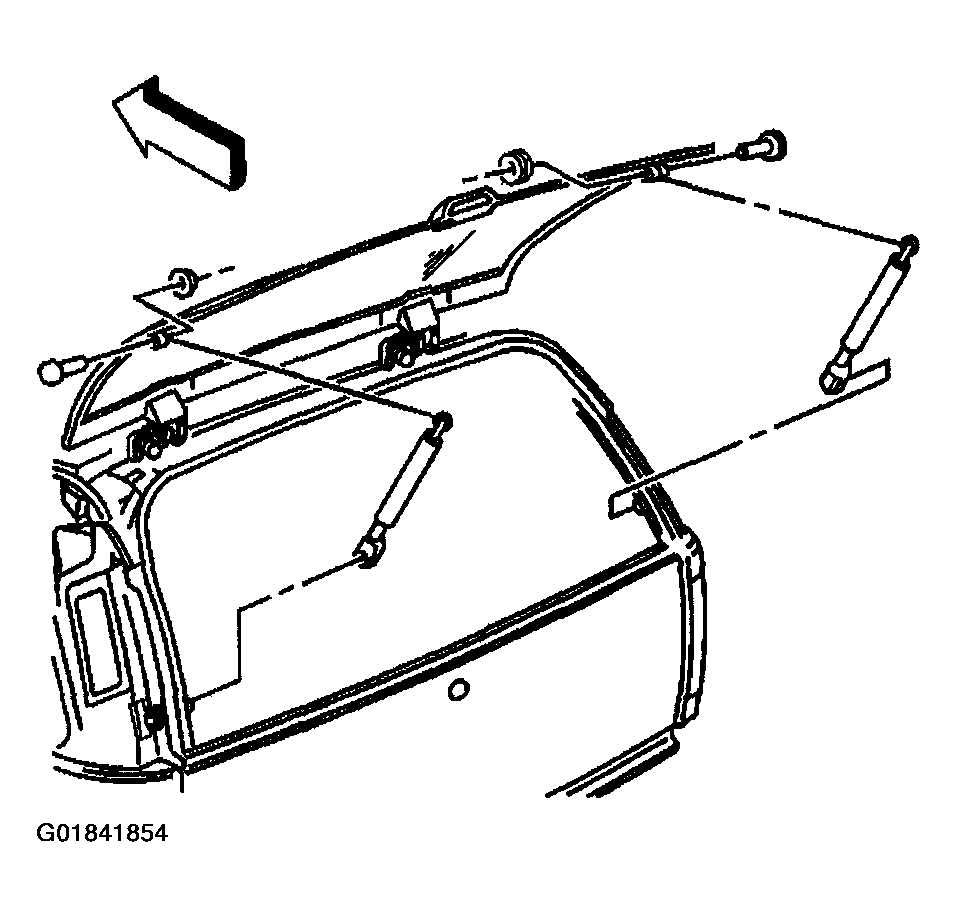

    Fig 1: Locating Rear Lift Window Panel Strut Components (4-Door)
    G01841854Courtesy of GENERAL MOTORS CORP.
  2. Install the upper end of the endgate window struts to the ball joint. Press in to place until fully seated.
  3. Install the upper end of the endgate window struts to the ball joint. Press in to place until fully seated.
  4. Remove the support from the endgate window.
  5. Close the endgate window.
