Removal Procedure

  1. Open and support the endgate window.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Remove the retainer from the hinge pin at the upper end of the endgate window strut.

    Discard the retainer.

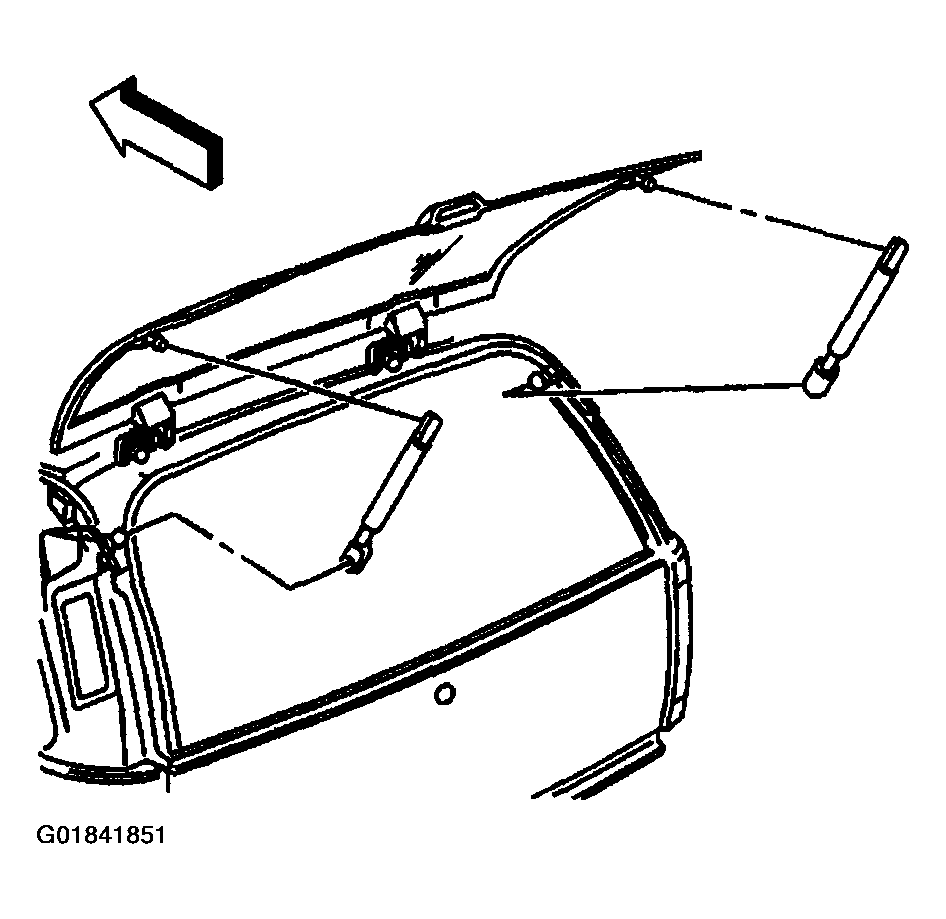

    Fig 1: Locating Rear Lift Window Panel Strut Components (2-Door)
    G01841851Courtesy of GENERAL MOTORS CORP.
  3. Remove the hinge pin from the upper end of the endgate window strut.

    Discard the hinge pin.

  4. Lift up the retainer clips on the endgate window struts using a small flat-bladed tool.
  5. Remove the lower end of the endgate window struts from the ball joint.
  6. Remove the endgate window struts from the endgate window.
