Installation Procedure

  1. Position the endgate window struts to the endgate window.
  2. Install the lower end of the endgate window struts to the ball joint. Press in to place until fully seated.

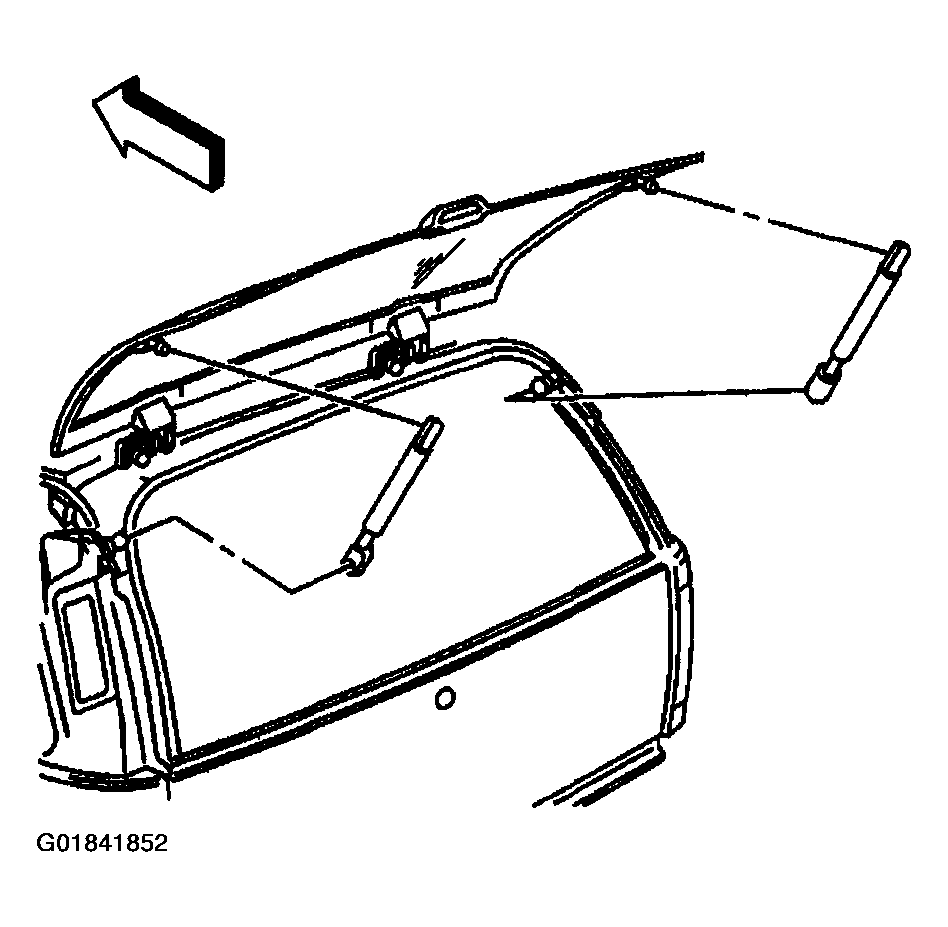

    Fig 1: Locating Rear Lift Window Panel Strut Components (2-Door)
    G01841852Courtesy of GENERAL MOTORS CORP.
  3. Install the new hinge pin to the upper end of the endgate window strut.
  4. Install the new retainer to the hinge pin.
  5. Remove the support from the endgate window.
  6. Close the endgate window.
