Removal Procedure

  1. Open and support the liftgate.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Lift up the retainer clips on the liftgate struts using a small flat-bladed tool.

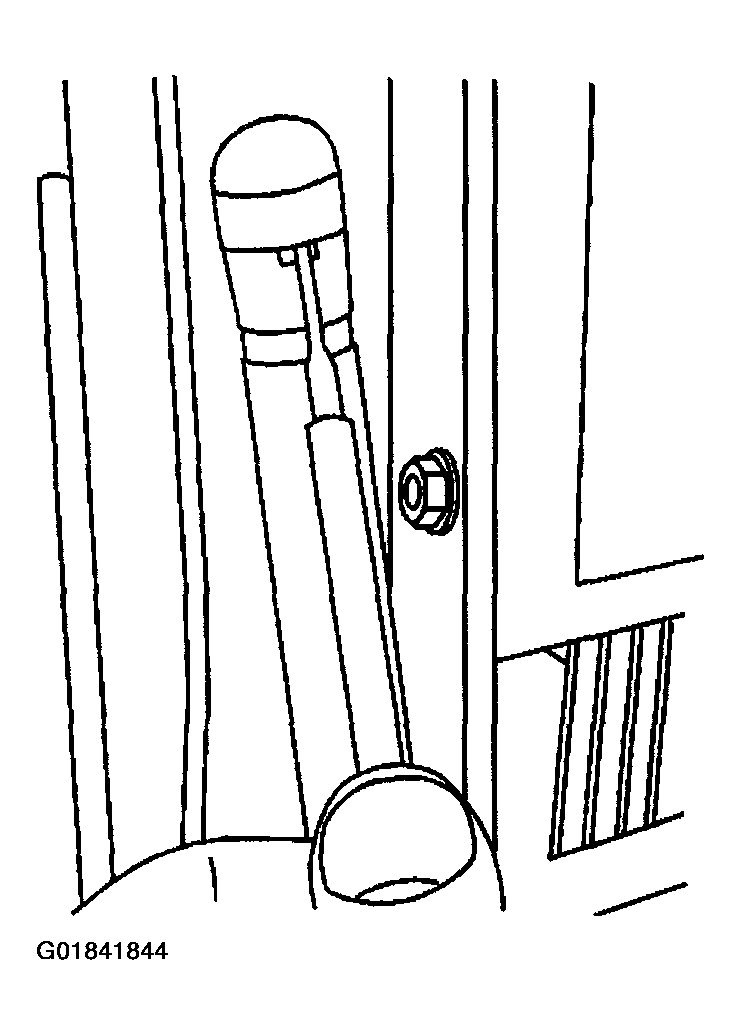

    Fig 1: Locating Liftgate Strut Retainer Clips
    G01841844Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper end of the liftgate struts from the ball joint.
  4. Remove the lower end of the liftgate struts from the ball joint.
  5. Remove the liftgate struts from the liftgate.

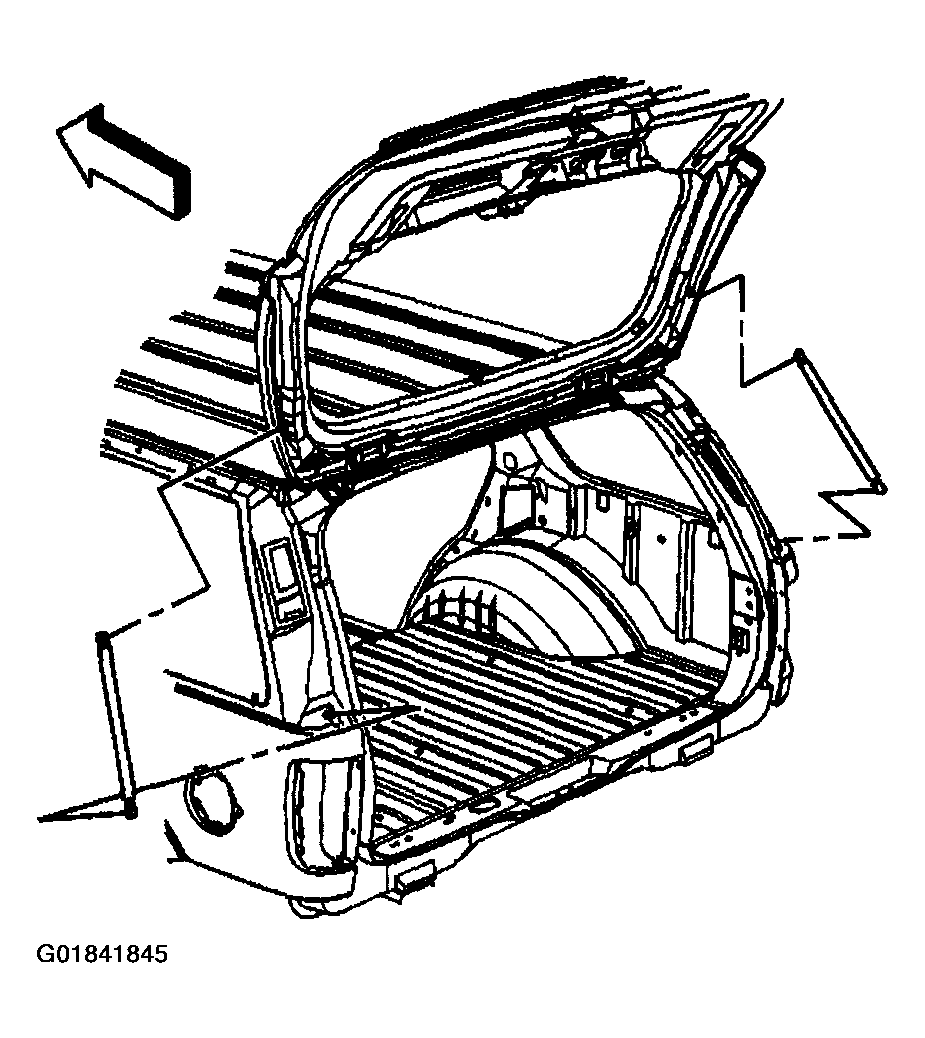

    Fig 2: Locating Liftgate Struts
    G01841845Courtesy of GENERAL MOTORS CORP.
