Removal Procedure

  1. Open and support the liftgate window.
    NOTE: Refer to LIFTGATE ASSIST ROD NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Remove the retainer from the hinge pin.

    The hinge pin is located at the upper end of the liftgate window strut.

    Discard the retainer.

  3. Remove the hinge pin from the upper end of the liftgate window strut.

    Discard the hinge pin.

  4. Lift up the retainer clips on the liftgate window struts using a small flat-bladed tool.
  5. Remove the lower end of the liftgate window struts from the ball joint.

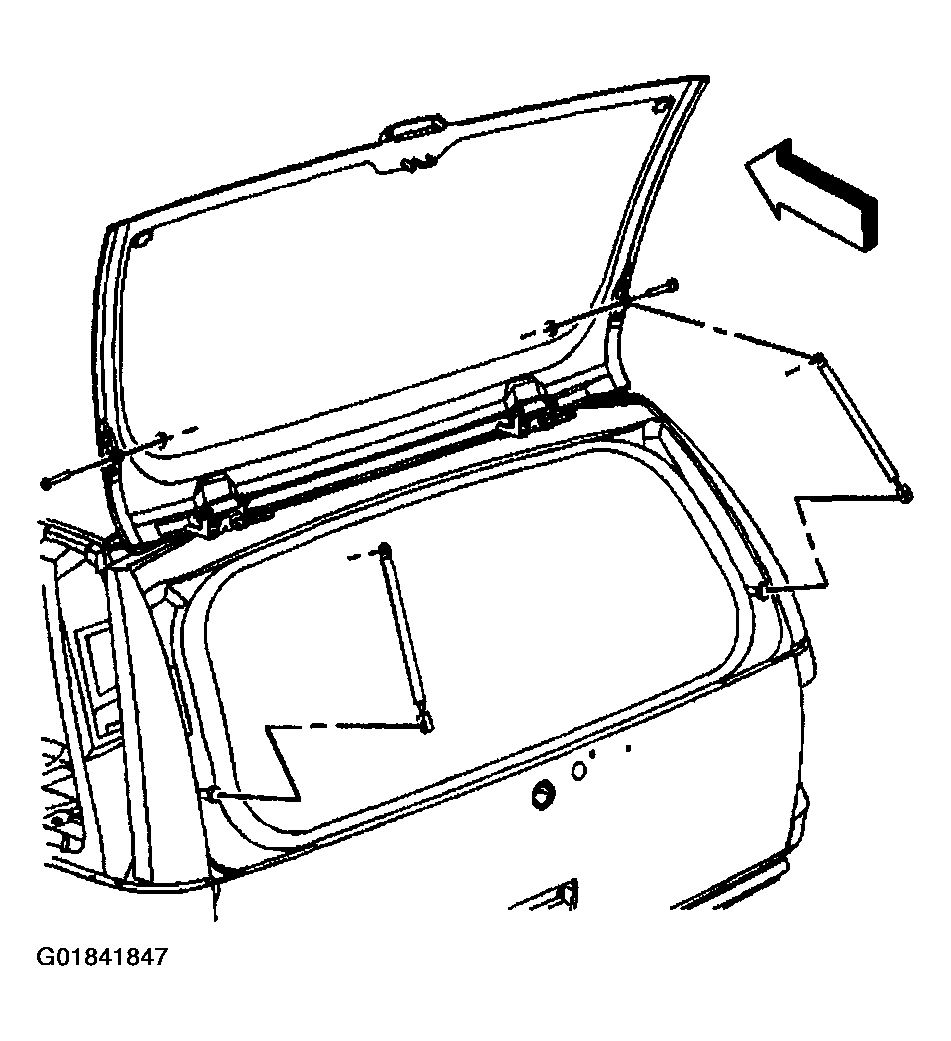

    Fig 1: Locating Liftgate Window Components
    G01841847Courtesy of GENERAL MOTORS CORP.
  6. Remove the liftgate window struts from the liftgate window.
