Installation Procedure

  1. Position the endgate struts to the endgate.
  2. Install the upper end of the endgate struts to the ball joint. Press in to place until fully seated.

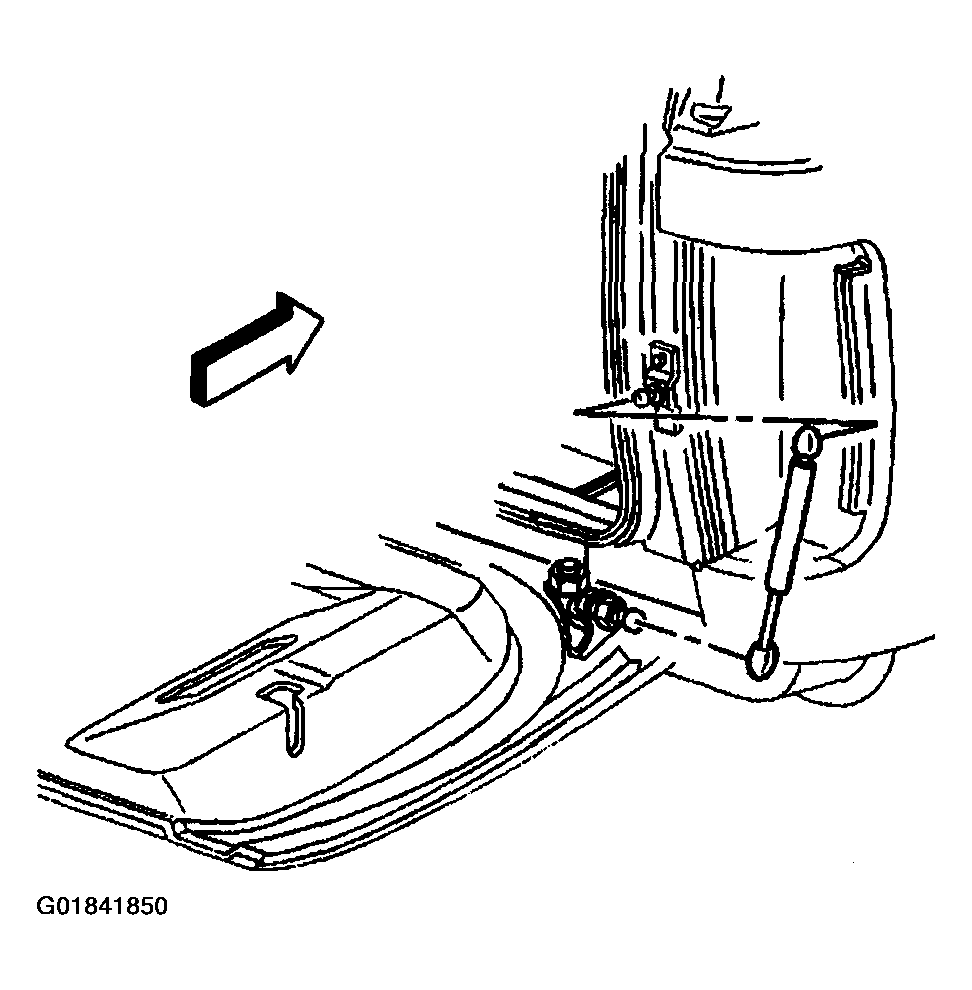

    Fig 1: Locating Endgate Struts Ends
    G01841850Courtesy of GENERAL MOTORS CORP.
  3. Install the lower end of the endgate struts to the ball joint. Press in to place until fully seated.
  4. Remove the support from the endgate.
  5. Close the endgate.
