Installation Procedure

  1. Position the sight shield on the vehicle frame.
  2. Install the pushpin retainers through the sight shield into the frame.

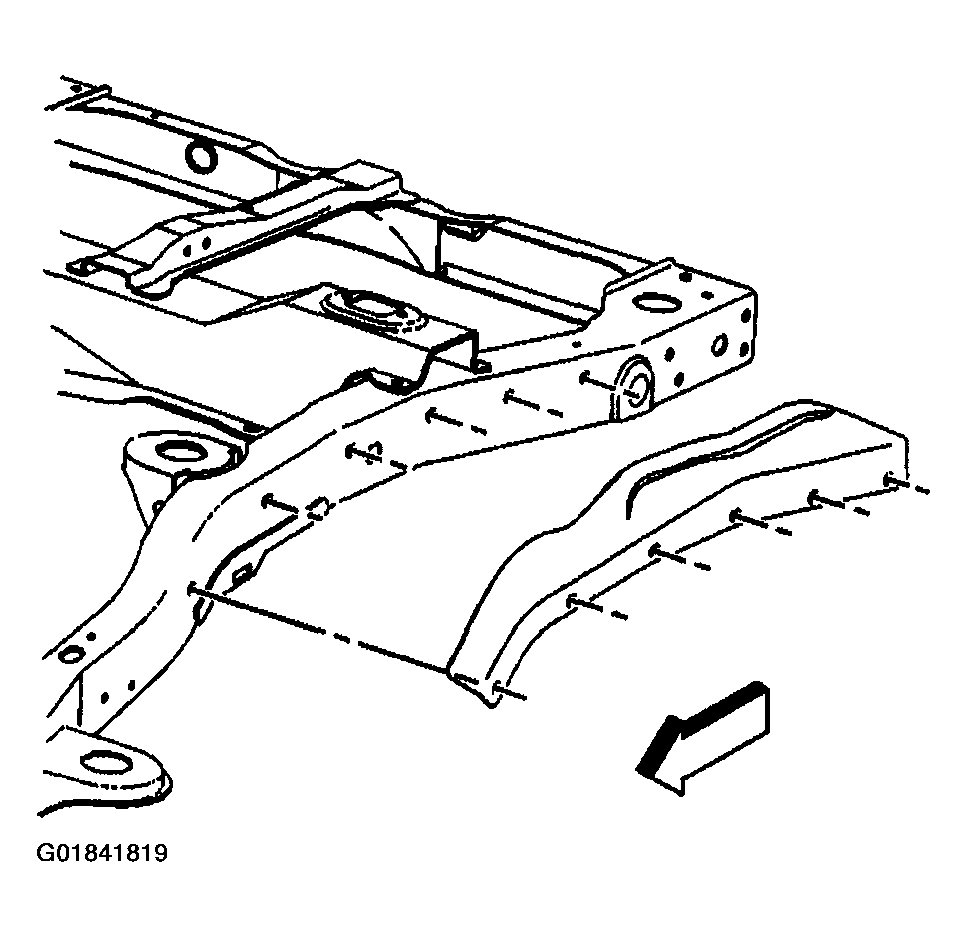

    Fig 1: Locating Rear Wheelhouse Panel Sight Shield
    G01841819Courtesy of GENERAL MOTORS CORP.
