Removal Procedure

  1. Remove the body side stationary window (2-Door only). Refer to BODY SIDE STATIONARY WINDOW REPLACEMENT (UTILITY) or BODY SIDE STATIONARY WINDOW REPLACEMENT (PICKUP) in STATIONARY WINDOWS article.
  2. Remove the molding from the quarter panel rear window (4-Door only).

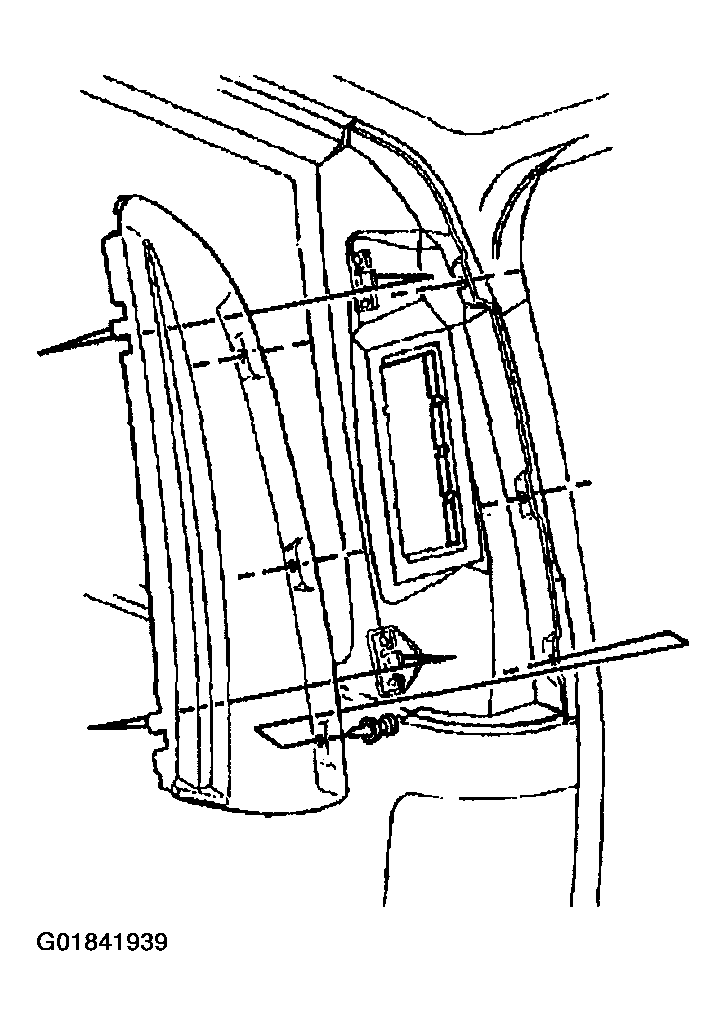

    Fig 1: Locating Rear Window Quarter Panel Molding (4-Door Only)
    G01841939Courtesy of GENERAL MOTORS CORP.
  3. Remove the pressure relief ventilation valve assembly.

    Use a flat-bladed tool in order to remove the valve from the rear of the cab.

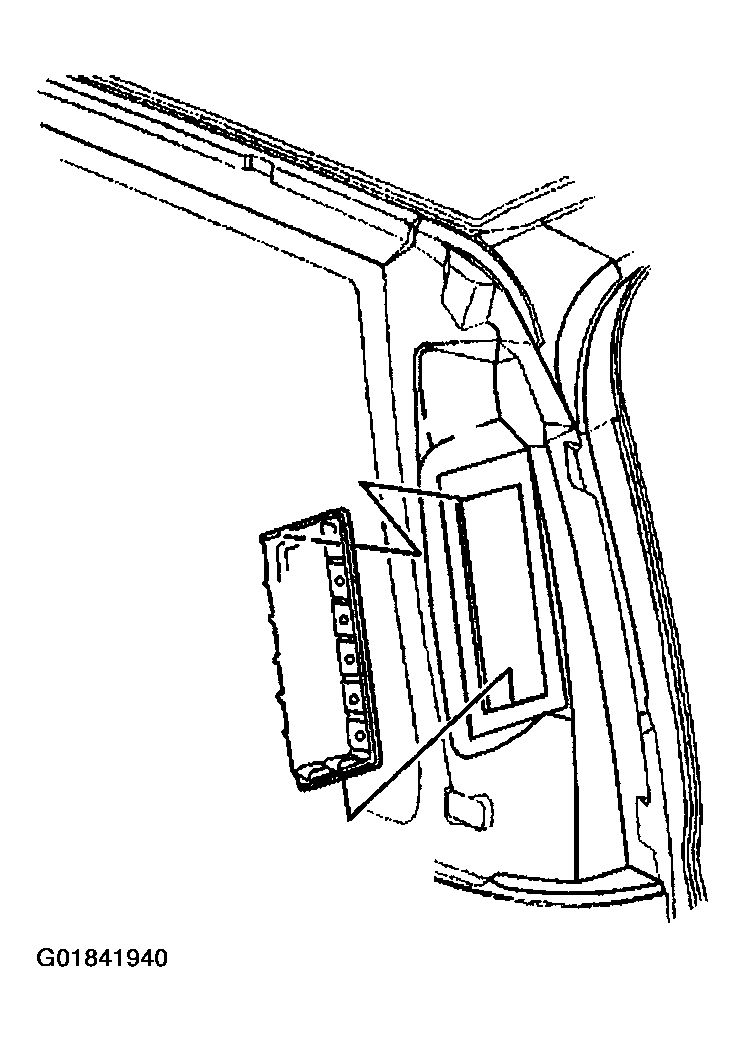

    Fig 2: Locating Pressure Relief Valve (Utility)
    G01841940Courtesy of GENERAL MOTORS CORP.
