Installation Procedure

  1. Install the pressure relief ventilation valve assembly.

    Firmly press the valve into the rear of the cab.

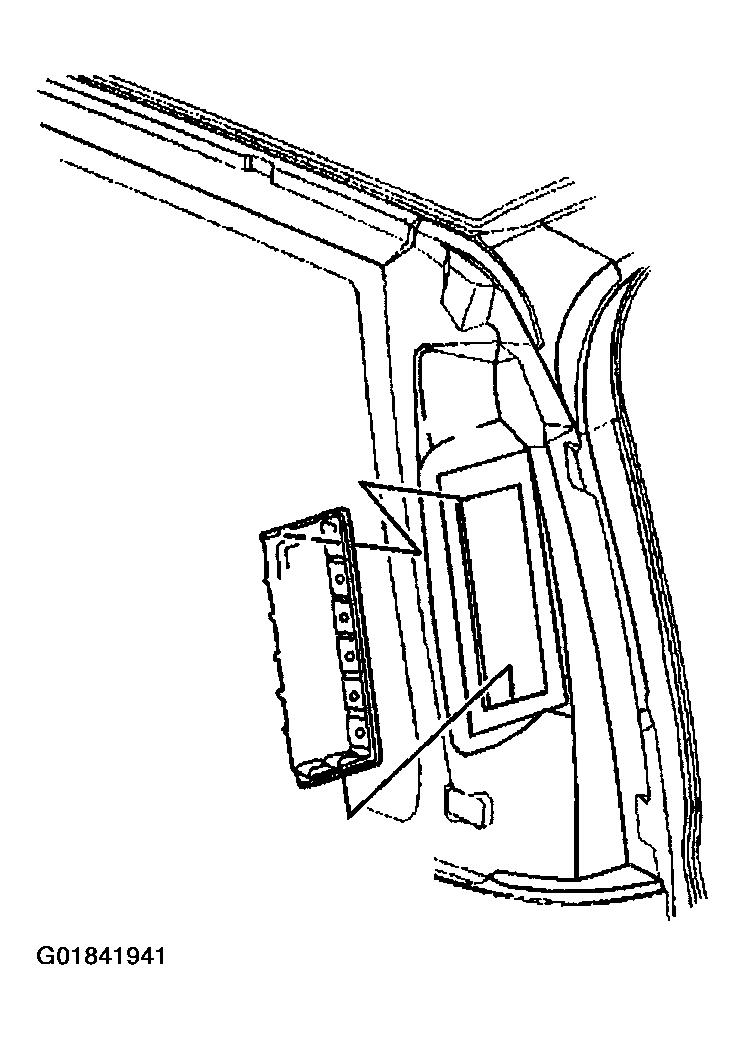

    Fig 1: Locating Pressure Relief Valve (Utility)
    G01841941Courtesy of GENERAL MOTORS CORP.
  2. Install the molding to the quarter panel rear window (4-Door only).
  3. Install the molding fasteners to the quarter panel rear window (4-Door only).
  4. Install the body side stationary window (2-Door only). Refer to BODY SIDE STATIONARY WINDOW REPLACEMENT (UTILITY) or BODY SIDE STATIONARY WINDOW REPLACEMENT (PICKUP) in STATIONARY WINDOWS article.

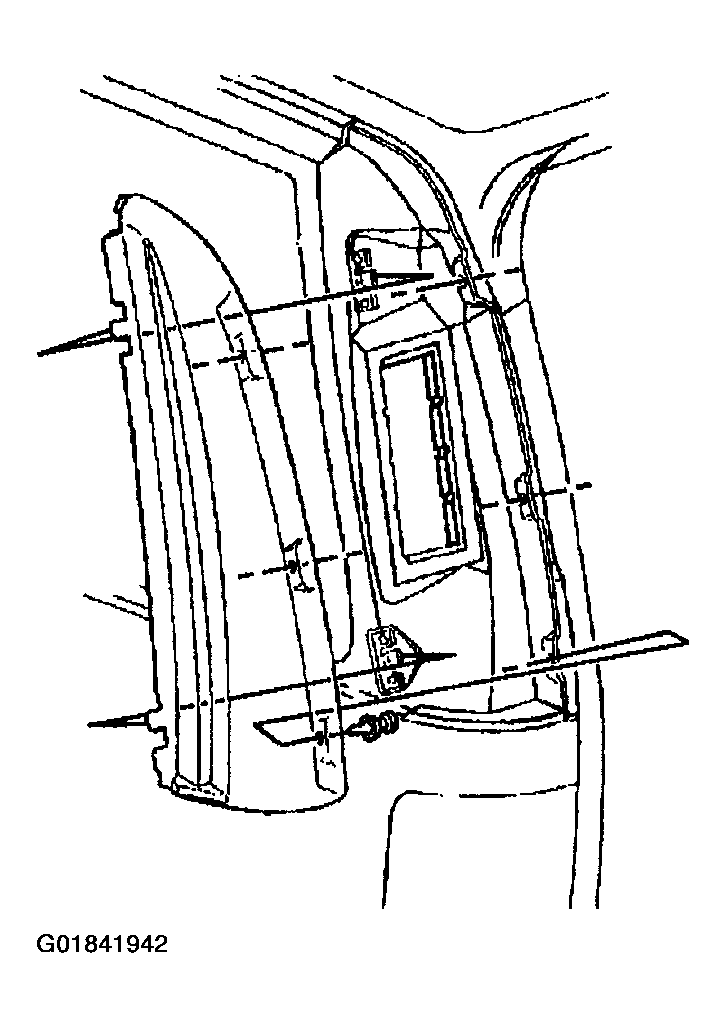

    Fig 2: Locating Rear Window Quarter Panel Molding (4-Door Only)
    G01841942Courtesy of GENERAL MOTORS CORP.
