Removal Procedure

Use a flat-bladed tool in order to pry the step upward.
Remove the step pad from the panel.

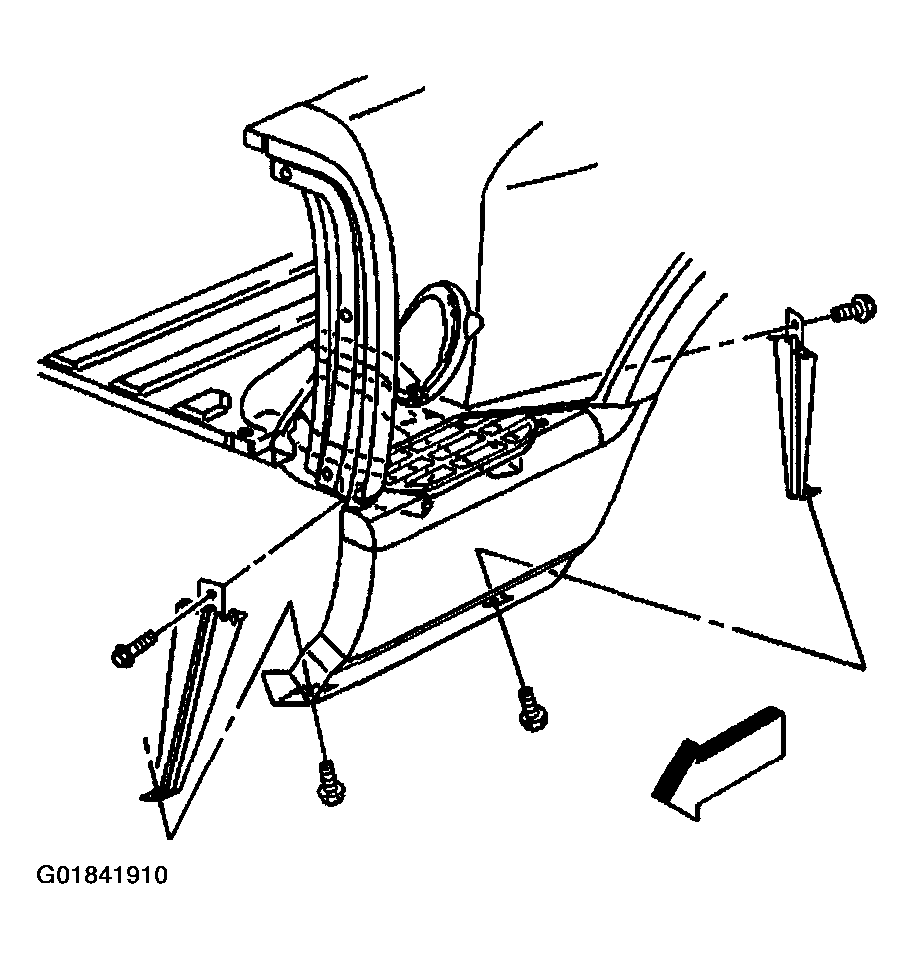

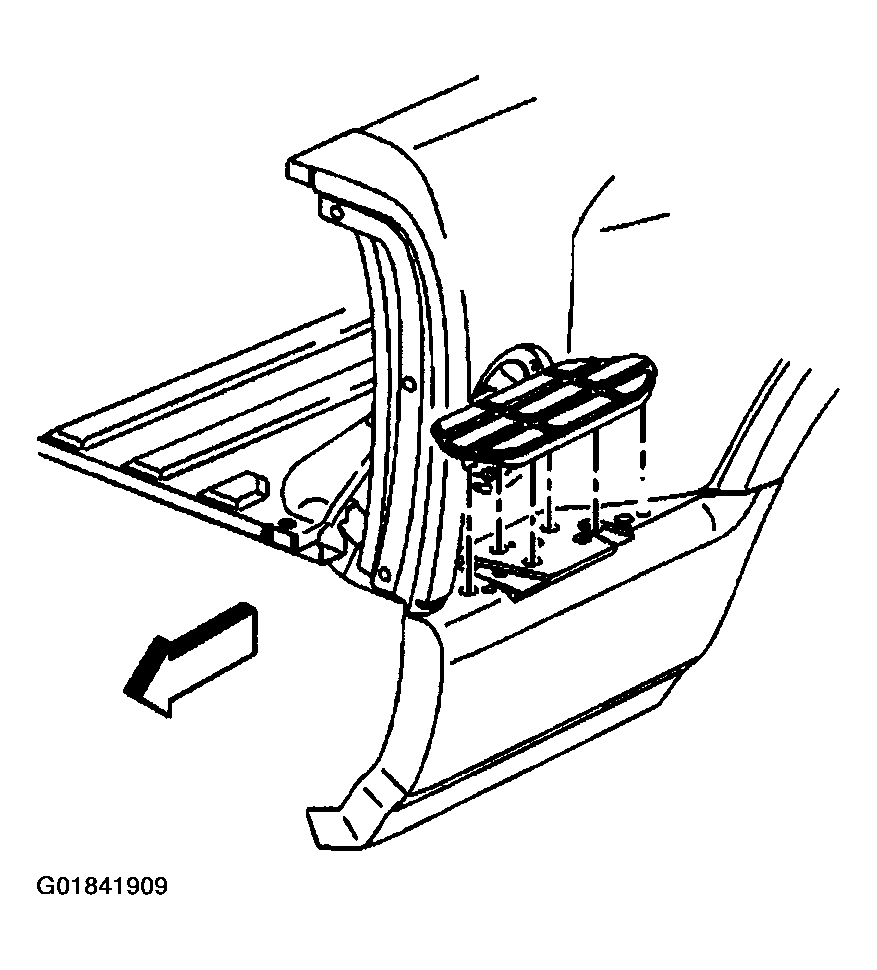

Fig 1: Locating Pickup Box Side Panel Front Step
Courtesy of GENERAL MOTORS CORP.
Remove the rear brace from the step panel.
Remove the forward brace from the step panel and the forward support bracket.

Fig 2: Locating Forward & Rear Step Panel Braces & Forward Support Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the screws that secure the step panel to the forward and rear support brackets.

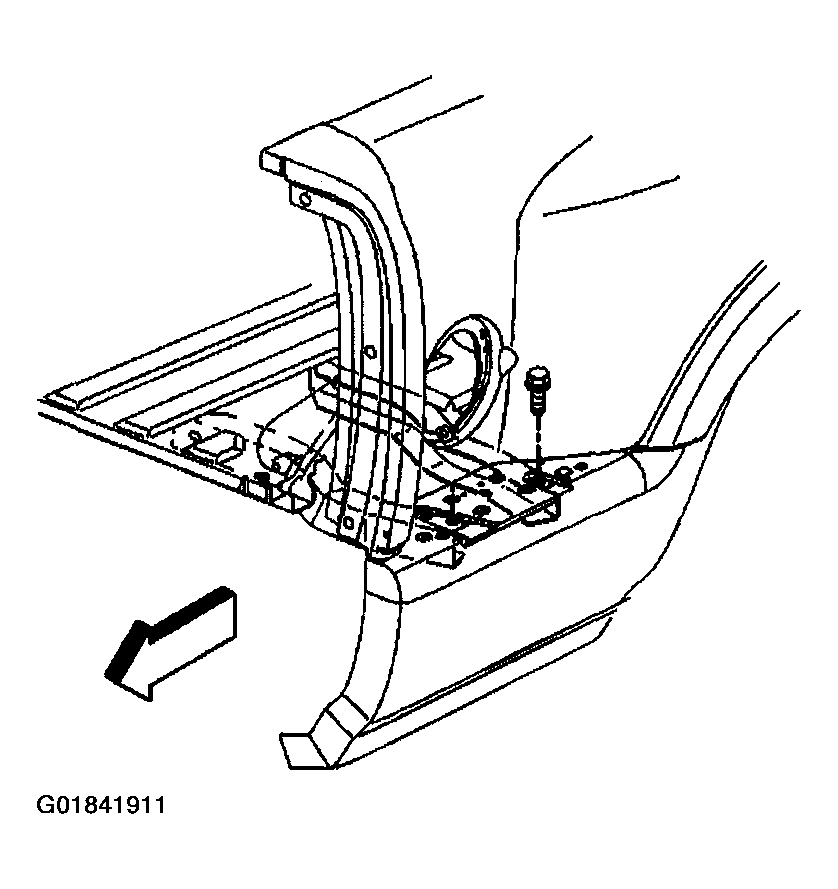

Fig 3: Locating Forward & Rear Support Brackets
Courtesy of GENERAL MOTORS CORP.
Remove the retainers that secure the step panel to the outer panel.
Remove the step panel from the side outer panel.

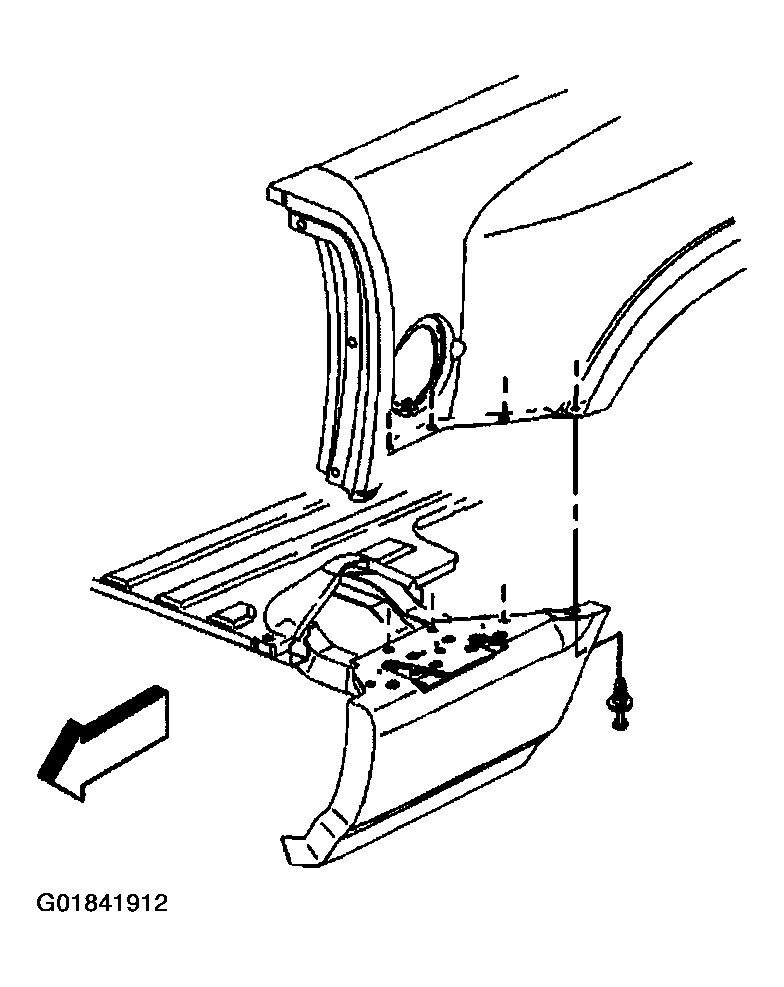

Fig 4: Locating Side Outer Panel Step Panel
Courtesy of GENERAL MOTORS CORP.
Remove the nuts that secure the forward and rear support brackets to the pickup box cross sills.

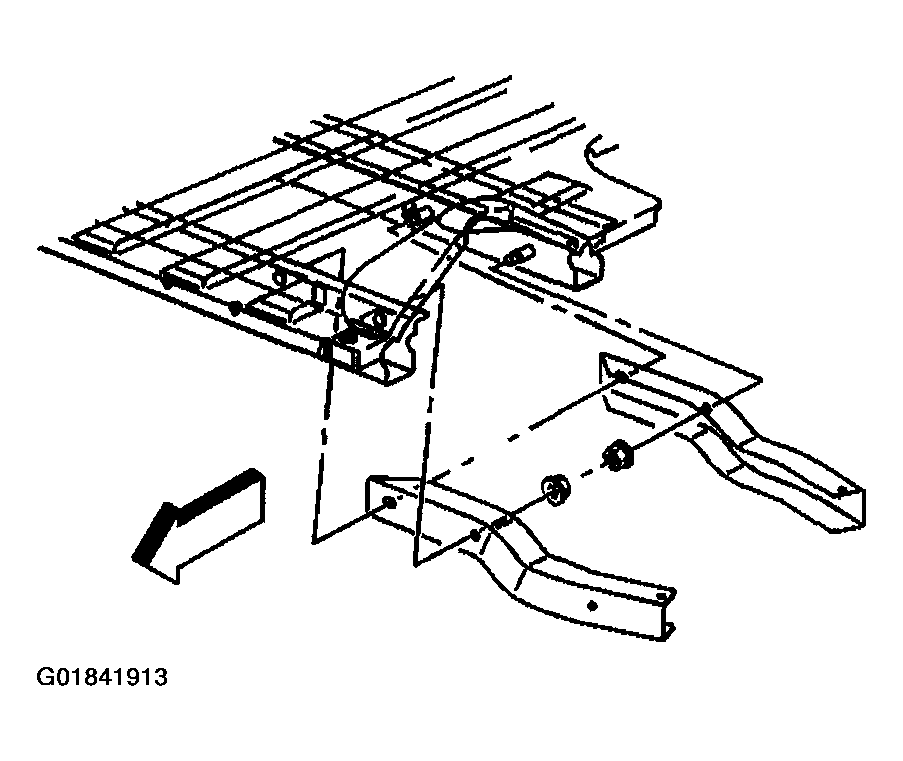

Fig 5: Locating Pickup Box Front & Rear Support Brackets
Courtesy of GENERAL MOTORS CORP.
