Removal Procedure

  1. Open the liftgate.
  2. Remove the bolts that retain the liftgate striker to the vehicle.

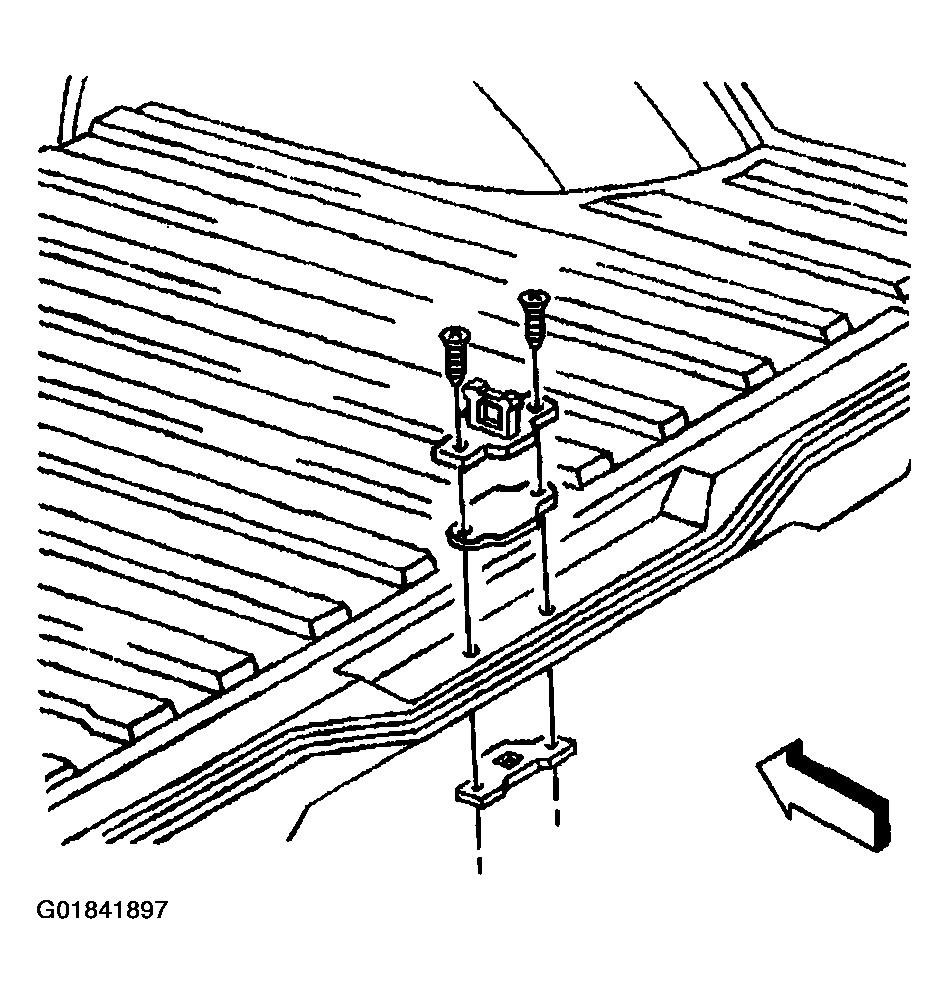

    Fig 1: Locating Liftgate Lock Striker
    G01841897Courtesy of GENERAL MOTORS CORP.
  3. Remove the liftgate striker backing plate.
  4. Remove the liftgate striker and any spacers from the vehicle.
